The SafeLink Form Link Anchor is a base designed for use with the the Safewaze SafeLink HLL System. Easily installed on various structures and used with our 7.5′ aluminum post.
SafeLink Form Link Anchor
FS-EX2502
SafeLink Form Link Anchor
FS-EX2502SafeLink Bases
The SafeLink Form Link Anchor is a base designed for use with the the Safewaze SafeLink HLL System. Easily installed on various structures and used with our 7.5′ aluminum post.
Features:
- Includes 2-piece aluminum bracket kit, 2 steel threaded rods and 2 wing nut brackets
- Versatile mounting:
- (6) #7 or larger stirruped rebar
- Finished wall (min. 8" thick)
- Clamped around a finished column
- Use with FS-EX5501-5 aluminum posts
- Allowed working radius: +/- 15° perpendicular to the anchor point, do not side load
- Not for 360° tie-off, not for use with FS-EX2514 SafeLink Whizzler Swivel Cap
- Requires 1 1/2” supporting block for installation (not included)
Related products
-
019-8037
-
Cable HLL: No Anchor
This product has multiple variants. The options may be chosen on the product page -
Kernmantle Rope HLL: No Anchor
This product has multiple variants. The options may be chosen on the product page
Specifications
| Materials: | 6061-T6511 aluminum bracket, zinc plated steel wingnuts and thread bar |
| Weight: | 26 lbs. (11.8 kg) |
| Length: | 28" (711.2 mm) |
| Weight Capacity: | 130-310 lbs. (59-141 kg) |
| Minimum Breaking Strength: | 3,600 lbs. (1633 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
Related Products
Related products
-
Kernmantle Rope HLL: Chain Anchors
This product has multiple variants. The options may be chosen on the product page -

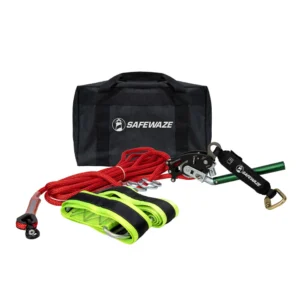

Kernmantle Rope HLL: Cross Arm Straps
