The Northstar Edge Class 2 Self-Retracting Lifeline is engineered for demanding jobsite conditions where reliability, durability and performance matter. The advanced design proactively eliminates common SRL failures for extended life with smooth, controlled operation while the patented cable retraction limiter reduces impact on internal components to protect the SRL, the work area and the workers. Available in 20’, 30’ and 50’ lengths.

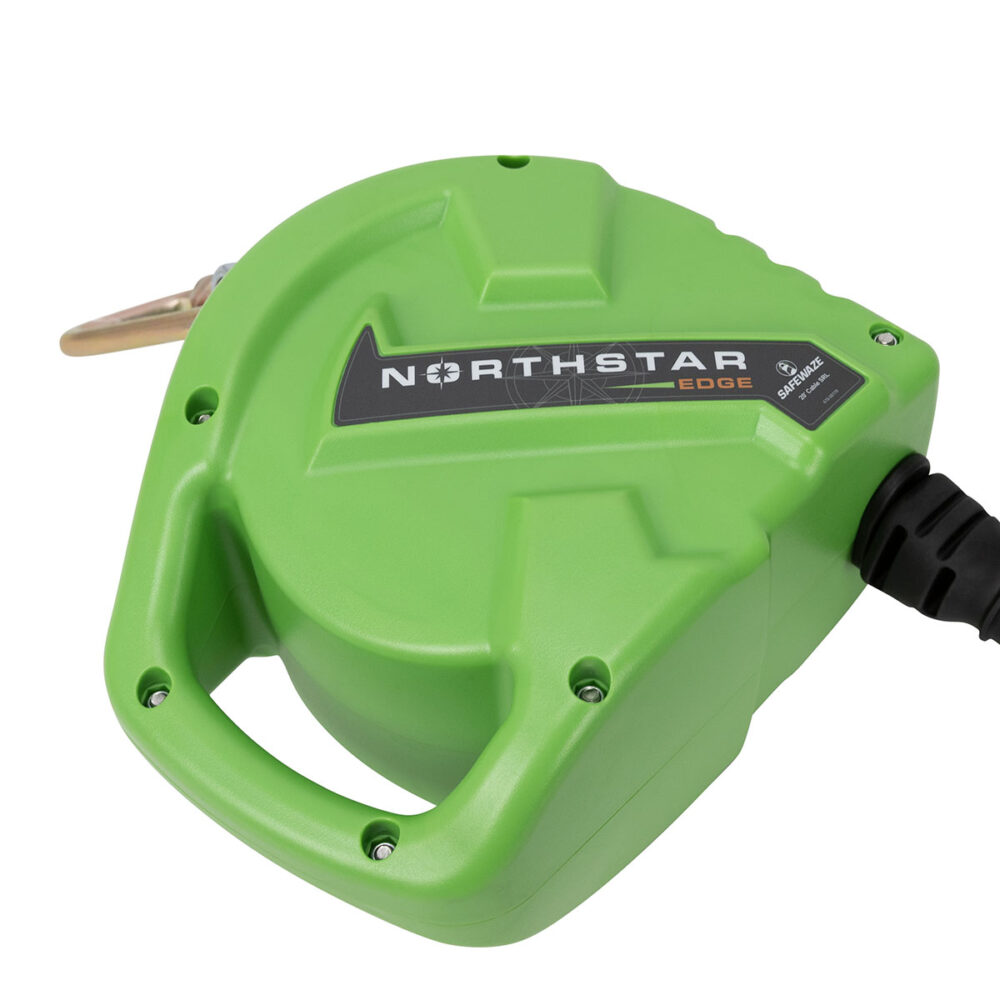

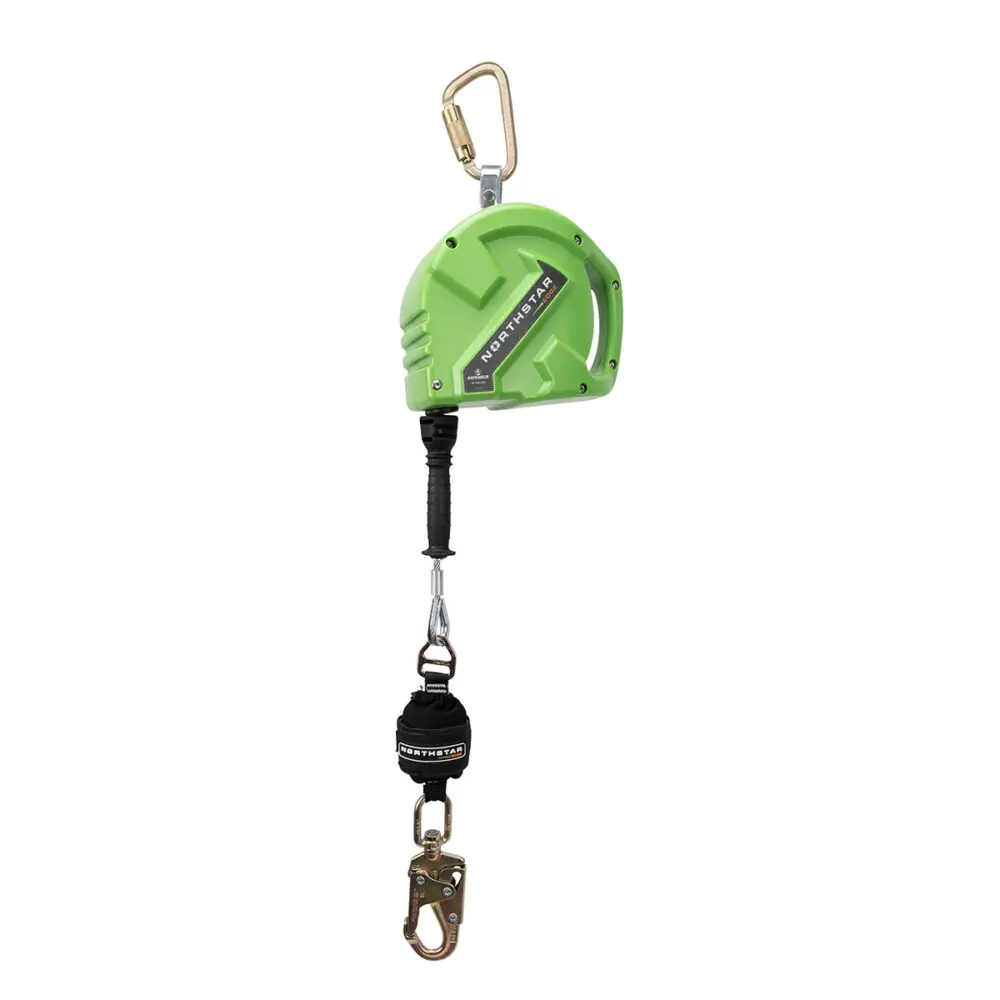

Northstar Edge Cable SRL
Northstar Edge Cable SRL
The Northstar Edge Class 2 Self-Retracting Lifeline is engineered for demanding jobsite conditions where reliability, durability and performance matter. The advanced design proactively eliminates common SRL failures for extended life with smooth, controlled operation while the patented cable retraction limiter reduces impact on internal components to protect the SRL, the work area and the workers. Available in 20’, 30’ and 50’ lengths.
Features:
- Patented cable retraction limiter controls return speed and eliminates dangerous freewheeling
- Protective semi-sealed internal assemblies prevent contamination from dust, dirt and debris
- Innovative anti-ratcheting pawls help prevent premature disengagement on flexible anchor points, including HLLs
- Oscillating pawl design prevents payout when pawls are frozen
- Simplified cable replacement in under 10 minutes by a Competent Person with Safewaze cable replacement training

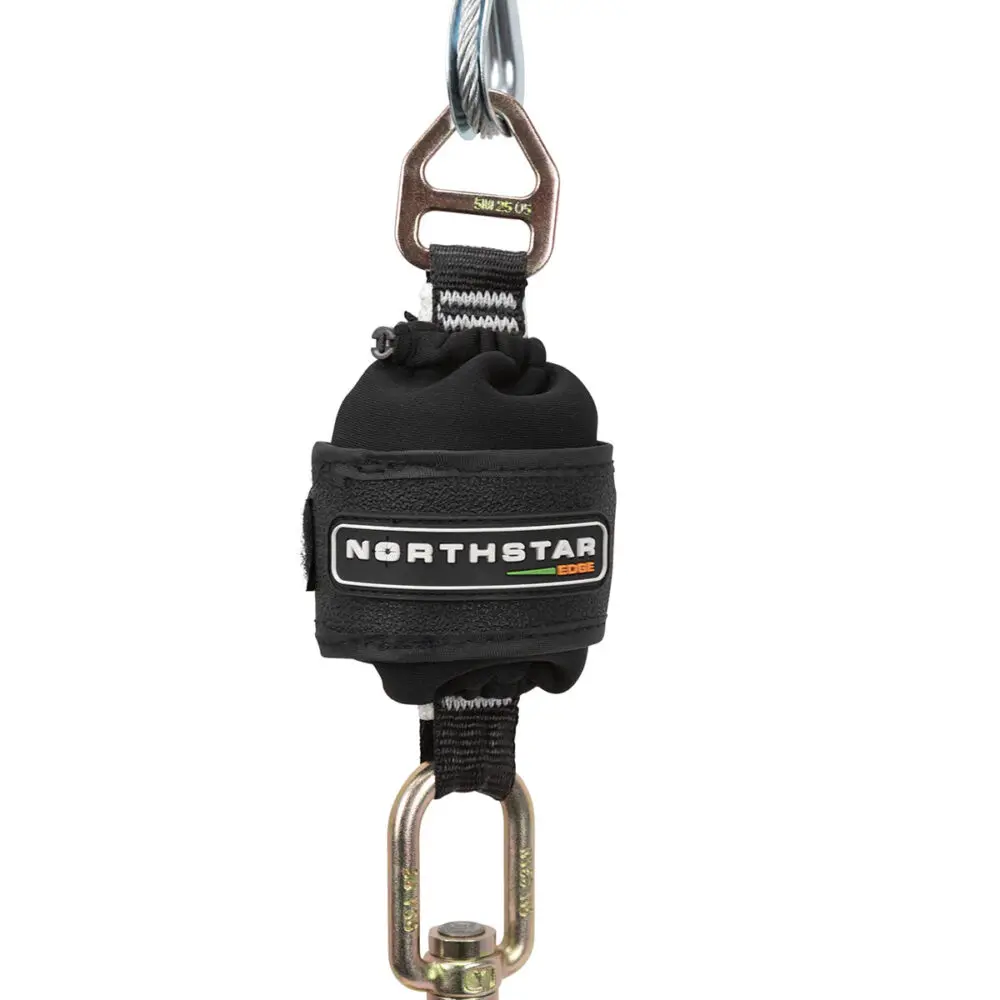

- Compact, abrasion-resistant energy absorber

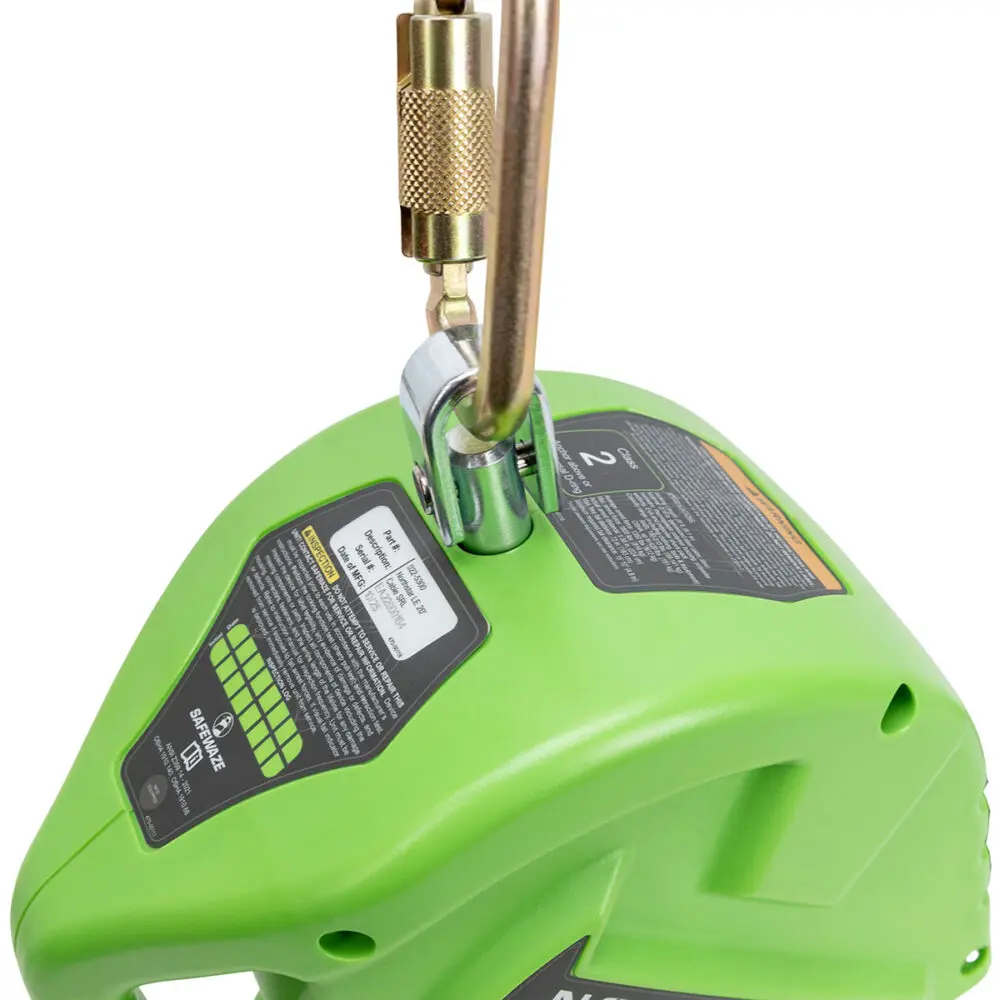

- 360°/180° swivel provides full range of motion
- RFID enabled for simplified asset tracking
- Galvanized steel cable
| Material | Galvanized Steel |
|---|---|
| Leading Edge | Yes |
| Class | 2 |
| Serviceable/Reparable | Yes |
| New Product | Yes |
Related products
-
FS-FSP14075-W-TBH
-
Northstar Classic LE Cable SRL – ANSI Z359.14-21
This product has multiple variants. The options may be chosen on the product page -
Latitude HD 9′ Single Web SRL-P: Carabiner
This product has multiple variants. The options may be chosen on the product page
Specifications
| Class 2 SRL | |
| Materials: | 3/16" Galvanized steel cable, steel and stainless steel components, polyester shock pack, polycarbonate housing and rubber handle |
| Weight: | 11 lbs. (5.0 kg) |
| Length: | 20' (6.1 m) |
| Attachment Point: | Swivel Snap Hook |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.14-2021 |
| OSHA Standards: | 1910.140, 1910.66 |
| Class 2 SRL | |
| Materials: | 3/16" Galvanized steel cable, steel and stainless steel components, polyester shock pack, polycarbonate housing and rubber handle |
| Weight: | 13.4 lbs. (6.1 kg) |
| Length: | 30' (9.2 m) |
| Attachment Point: | Swivel Snap Hook |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.14-2021 |
| OSHA Standards: | 1910.140, 1910.66 |
| Class 2 SRL | |
| Materials: | 3/16" Galvanized steel cable, steel and stainless steel components, polyester shock pack, polycarbonate housing and rubber handle |
| Weight: | 17.8 lbs. (8.1 kg) |
| Length: | 50' (15.2 m) |
| Attachment Point: | Swivel Snap Hook |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.14-2021 |
| OSHA Standards: | 1910.140, 1910.66 |
| Class 2 SRL | |
| Materials: | 3/16" Galvanized steel cable, steel and stainless steel components, polyester shock pack, polycarbonate housing and rubber handle |
| Weight: | 11 lbs. (5.0 kg) |
| Length: | 20' (6.1 m) |
| Attachement Point: | Swivel Snap Hook |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.14-2021 |
| OSHA Standards: | 1910.140, 1910.66 |
Related Products
Related products
-

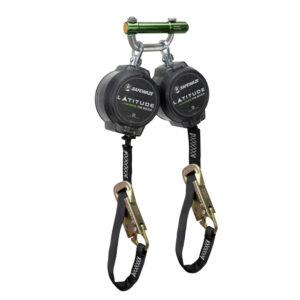

Latitude Pro Tie-Back 7′ Dual Web SRL-P: FS-EX313, 40″ Tie-back
