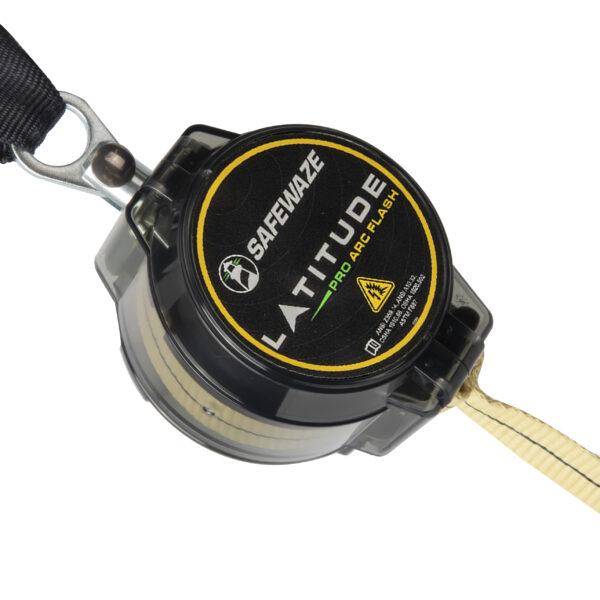

The Latitude Pro Arc Flash 7′ Single Web Self Retracting Lifeline offers broad use in multiple extreme heat environments: arc flash, hot works and welding. Built for premium performance with a revolutionary internal brake system exclusive to Safewaze plus clear, heavy duty housing with side payout.
Latitude Pro Arc Flash 7′ Single Web SRL-P: 18-22″ Adj. Aramid Ext., Alu Captive Eye Carabiners
022-5310
Latitude Pro Arc Flash 7′ Single Web SRL-P: 18-22″ Adj. Aramid Ext., Alu Captive Eye Carabiners
022-5310
The Latitude Pro Arc Flash 7′ Single Web Self Retracting Lifeline offers broad use in multiple extreme heat environments: arc flash, hot works and welding. Built for premium performance with a revolutionary internal brake system exclusive to Safewaze plus clear, heavy duty housing with side payout.
Features:
- Complete confidence in full, continuous retraction with side payout housing
- Reliable internal braking system eliminates need for external shock pack
- 360/180° attachment point offers full range of motion
- High strength semi-sealed assembly protects internal components from debris to extend product life
- Translucent housing allows easy inspection of webbing, reserve line and pawl assembly
- Trusted Kevlar® webbing and Nomex® flame-resistant label cover
- Minimal exposed webbing protects against UV damage
- Dielectric, insulated snap hook option provides confidence to anchor closer to electrical source
- 18-22" Aramid extender prevents current from traveling between the attachment point and SRL housing
- Adjustable to keep housing away from bucket controls
- Complete confidence in full, continuous retraction with side payout housing
- Reliable internal braking system eliminates need for external shock pack
- 360/180° attachment point offers full range of motion
- High strength semi-sealed assembly protects internal components from debris to extend product life
- Translucent housing allows easy inspection of webbing, reserve line and pawl assembly
- Trusted Kevlar® webbing and Nomex® flame-resistant label cover
- Minimal exposed webbing protects against UV damage
- All components are Z359.12 compliant
| Legs | Single |
|---|---|
| Attachment | Alu Carabiner |
| Connector | Alu Carabiner |
| Material | Web |
| Class | 1 |
Related products
-
Latitude Pro Tie-Back 7′ Single Web SRL-P: 40″ Tie-back
This product has multiple variants. The options may be chosen on the product page -
Latitude Pro Arc Flash 7′ Single Web SRL-P: Carabiner
This product has multiple variants. The options may be chosen on the product page -
Latitude HD 7′ Single Web SRL-P: Carabiner
This product has multiple variants. The options may be chosen on the product page
Specifications
| Class A SRL | |
| Materials: | Steel and aluminum bracket, clear resin housing, 20 mm Kevlar® webbing, steel snap hook |
| Weight: | 2.6 lbs. (1.2 kg) |
| Length: | 7' (2.1 m) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| ANSI Standards: | Z359.14, A10.32 |
| OSHA Standards: | 1926.502 |
| Additional Standards: | ASTM F887 Arc Flash; NFPA 70E; 40 cal rated |
| Class A SRL | |
| Materials: | Steel and aluminum bracket, clear resin housing, 20 mm Kevlar® webbing, steel rebar hook |
| Weight: | 3.6 lbs. (1.6 kg) |
| Length: | 7' (2.1 m) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| ANSI Standards: | Z359.14, A10.32 |
| OSHA Standards: | 1926.502 |
| Additional Standards: | ASTM F887 Arc Flash; NFPA 70E; 40 cal rated |
| Class A SRL | |
| Materials: | Steel and aluminum bracket, clear resin housing, 20 mm Kevlar® webbing, aluminum snap hook |
| Weight: | 2.2 lbs. (1 kg) |
| Length: | 7' (2.1 m) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| ANSI Standards: | Z359.14, A10.32 |
| OSHA Standards: | 1926.502 |
| Additional Standards: | ASTM F887 Arc Flash; NFPA 70E; 40 cal rated |
| Class A SRL | |
| Materials: | Steel and aluminum bracket, clear resin housing, 20 mm Kevlar® webbing, aluminum rebar hook |
| Weight: | 3.1 lbs. (1.4 kg) |
| Length: | 7' (2.1 m) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| ANSI Standards: | Z359.14, A10.32 |
| OSHA Standards: | 1926.502 |
| Additional Standards: | ASTM F887 Arc Flash; NFPA 70E; 40 cal rated |
| Class A SRL | |
| Materials: | Steel and aluminum bracket, clear resin housing, 20 mm Kevlar® webbing, dielectric snap hook |
| Weight: | 2.3 lbs. (1 kg) |
| Length: | 7' (2.1 m) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| ANSI Standards: | Z359.14, A10.32 |
| OSHA Standards: | 1926.502 |
| Additional Standards: | ASTM F887 Arc Flash; NFPA 70E; 40 cal rated |
| Class 1 SRL-P | |
| Materials: | Clear resin housing, 20 mm Kevlar® webbing; aramid webbing; captive eye carabiners |
| Weight: | 2.5 lbs. (1.1 kg) |
| Length: | 7' (2.1 m) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| ANSI Standards: | Z359.14-2021 |
| OSHA Standards: | 1910.140, 1910.66 |
| Additional Standards: | ASTM F887 |
