Scaffold Davit Anchor: 1.6”- 2” Clamps

023-4104

Scaffold Davit Anchor: 1.6”- 2” Clamps

023-4104

Specialty

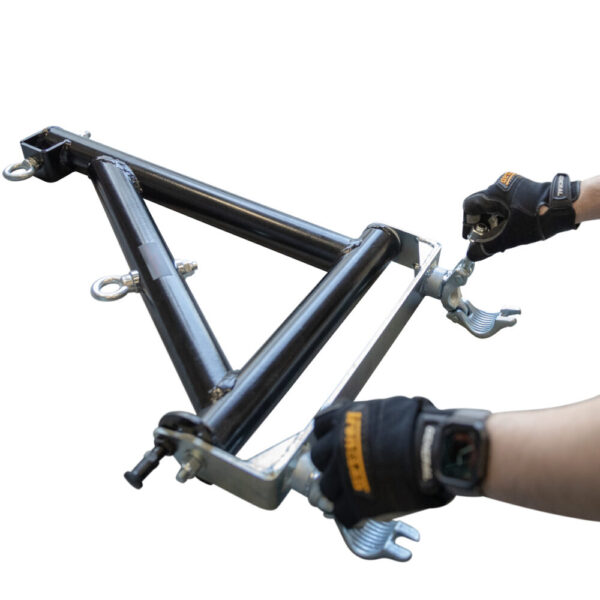

The Scaffold Davit Anchor is an overhead anchorage solution for use on scaffolding. The convenient horizontal pivoting system allows the anchor point to adjust to the ideal position directly above the worker, reducing swing fall hazard. Once positioned, the arm locks securely for safety.

Features:

  • Versatile overhead anchor point with flexibility in mounting locations
  • Easily installs directly to vertical post with just two clamps
  • For use on supported scaffolding with 1.6"-2" diameter
  • Horizontal swivel feature for optimum positioning to reduce swing fall risk
  • Locks securely in place to prevent movement during use
  • Use for fall arrest or fall restraint with the appropriate SRL or lanyard

The Scaffold Davit Anchor is an overhead anchorage solution for use on scaffolding. The convenient horizontal pivoting system allows the anchor point to adjust to the ideal position directly above the worker, reducing swing fall hazard. Once positioned, the arm locks securely for safety.

Type

Temporary

Submitted Successfully

We will respond soon

Specifications
Materials: Steel
Weight: 32 lbs. (14.5 kg)
Anchor Dimensions: 40" x 18" x 2.4" (1016 mm x 457.2 mm x 61 mm)
Minimum Breaking Strength: 5,000 lbs. (22kN)
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18-2017 Type A
OSHA Standards: 1926.502, 1910.140, 1910.66
