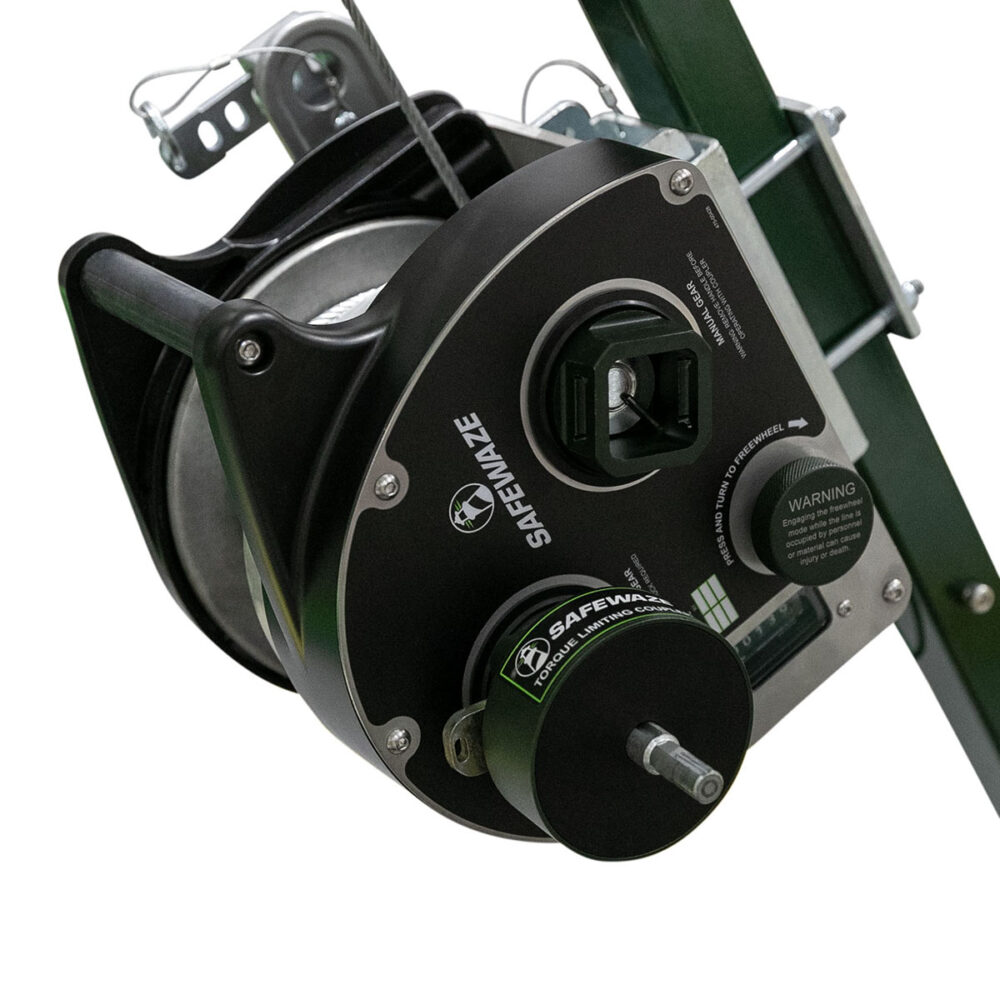

The Safewaze Technical Personnel Winch is designed to safely and efficiently raise and lower workers in confined space and vertical access applications. Engineered for smooth, controlled operation in both manual and powered modes, this winch delivers reliable performance, simplified maintenance tracking and durable construction for demanding jobsite environments.
65′ Technical Personnel Winch – Cable
025-11055
65′ Technical Personnel Winch – Cable
025-11055Devices
The Safewaze Technical Personnel Winch is designed to safely and efficiently raise and lower workers in confined space and vertical access applications. Engineered for smooth, controlled operation in both manual and powered modes, this winch delivers reliable performance, simplified maintenance tracking and durable construction for demanding jobsite environments.
Features:
- Designed for safe raising and lowering of personnel in confined space and vertical access applications
- Dual-mode operation: manual via removable handle or powered using torque limiting coupler and standard drill (sold separately)
- Powered function allows faster lifting and lowering over extended distances

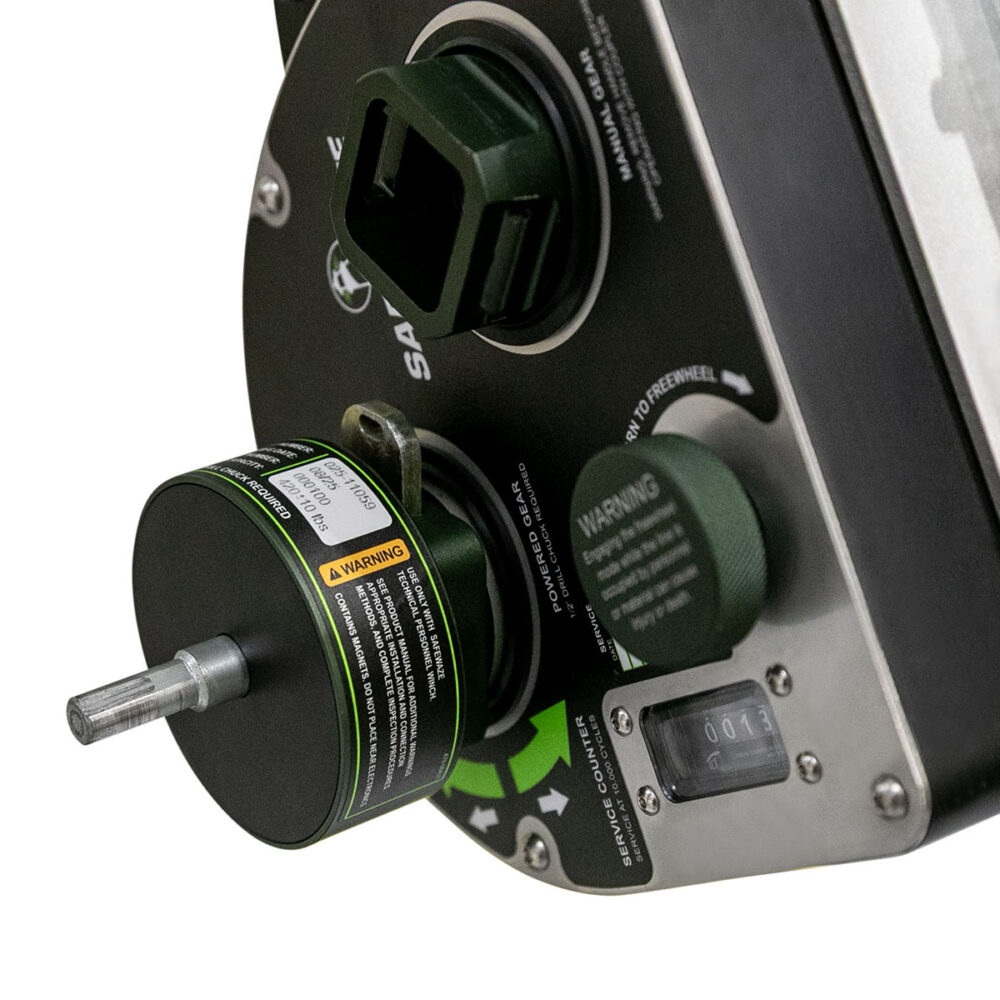

- Integrated cycle counter tracks device usage to monitor maintenance intervals
- Freewheel mode enables controlled, faster cable payout when needed

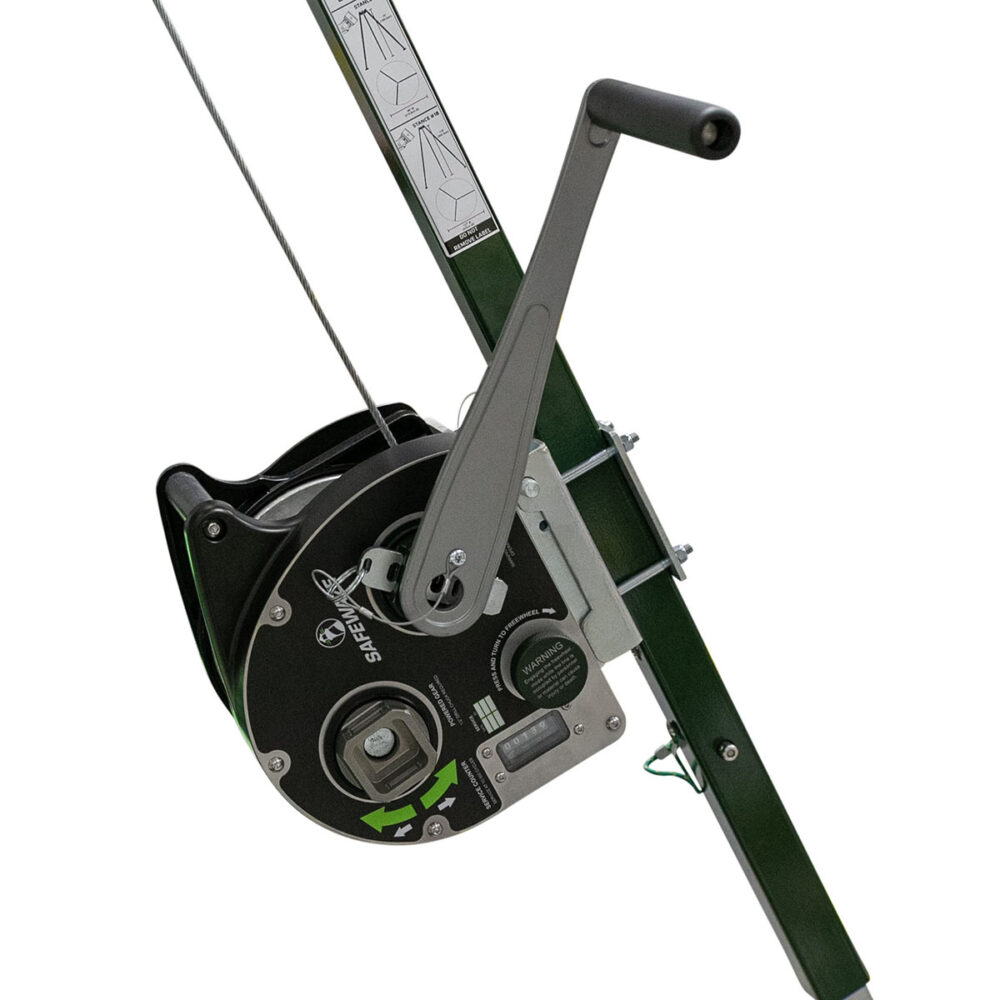

- Ergonomic, removable handle for optimal leverage in manual operation
- Built-in storage slot to stow handle when not in use
- 1:4 manual gear ratio
- 1:18.9 powered gear ratio
- Corrosion-resistant galvanized steel cable
- Equipped with mounting bracket for use with Safewaze tripod and Xtirpa system brackets (tripod and Xtirpa brackets sold separately)
- Unit is service and repair capable
Related products
-
020-11025
-
020-11020
-
019-11018
Specifications
| Materials: | 7/32" galvanized steel cable, aluminum, steel and stainless steel components |
| Weight: | 35 lbs. (16 kg) |
| Material Capacity: | Up to 620 lbs. (281 kg) |
| Attachment Point(s): | Swivel Snap Hook |
| Max Operation Force: | 30 lbs. (13.6 kg) |
| Max Service Interval: | 10,000 cycles |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.4-2013, Z117.1-2022 |
| OSHA Standards: | 1926.502, 1910.66, 1910.140 |
