65′ Mini Personnel Winch – Cable

024-11053

65′ Mini Personnel Winch – Cable

024-11053

Devices

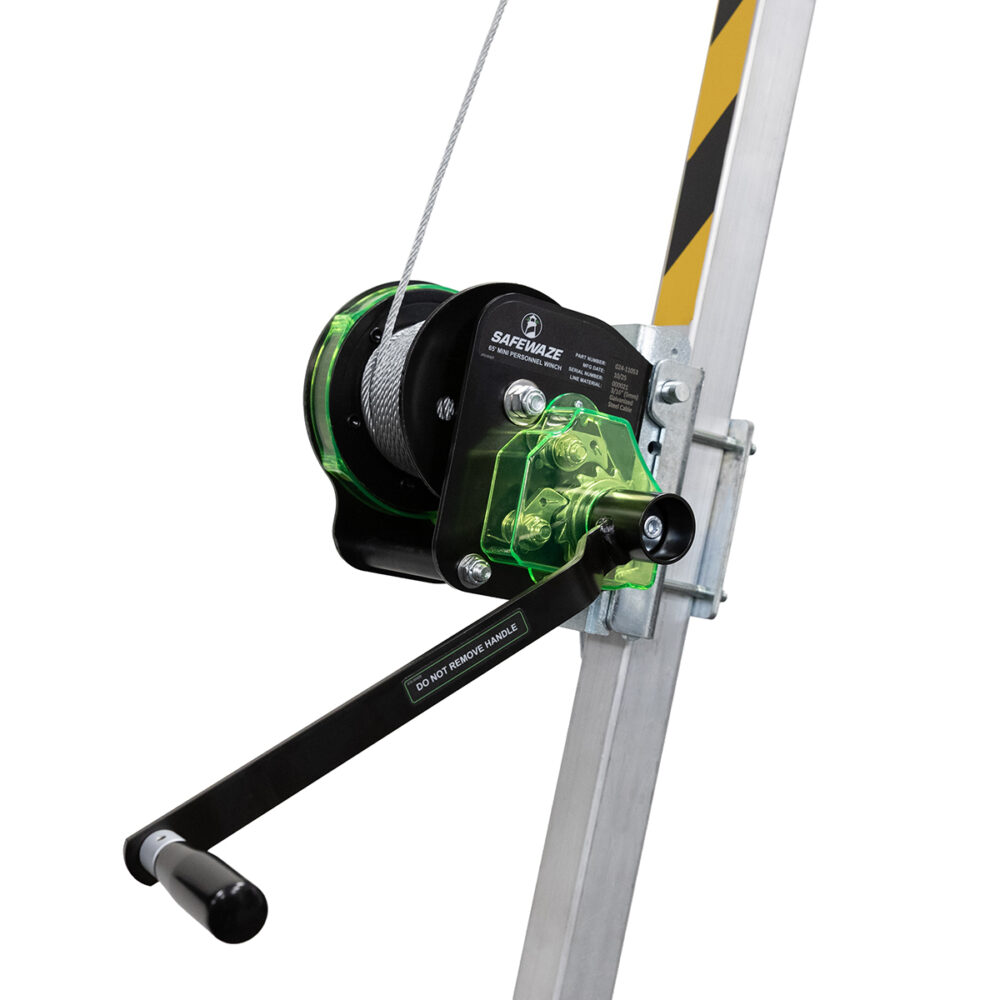

The Safewaze 65’ Mini Personnel Winch is a compact, economical solution designed for personnel riding applications in confined space and vertical access environments. Featuring a corrosion-resistant galvanized steel cable, transparent impact-resistant housing and an extended handle for improved leverage, this winch delivers smooth, reliable operation in a lightweight package. Engineered for ease of use and simple visual inspection, the Mini Personnel Winch keeps workers safe during jobs that require dependable personnel raising and lowering.

Features:

  • Compact winch designed for personnel riding applications
  • 5:1 gear ratio for controlled raising and lowering

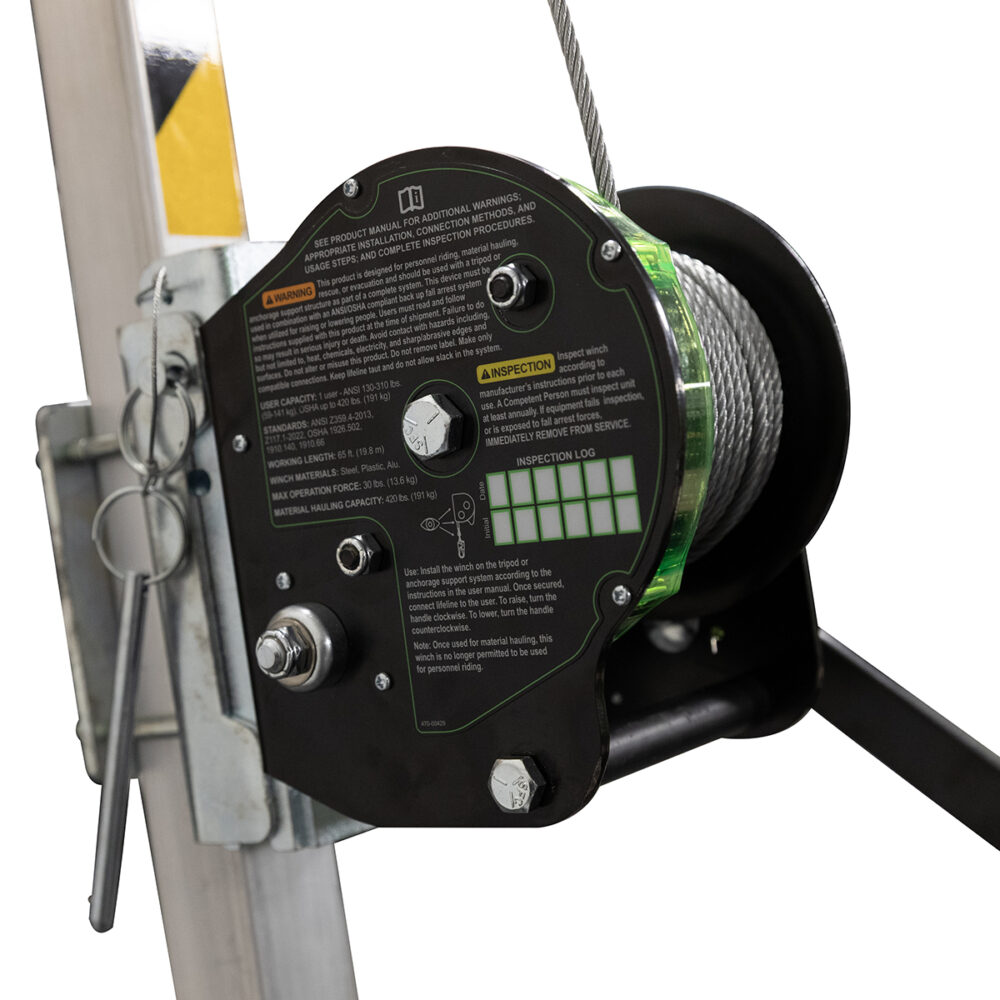

  • Transparent, impact-resistant housing allows easy visual inspection

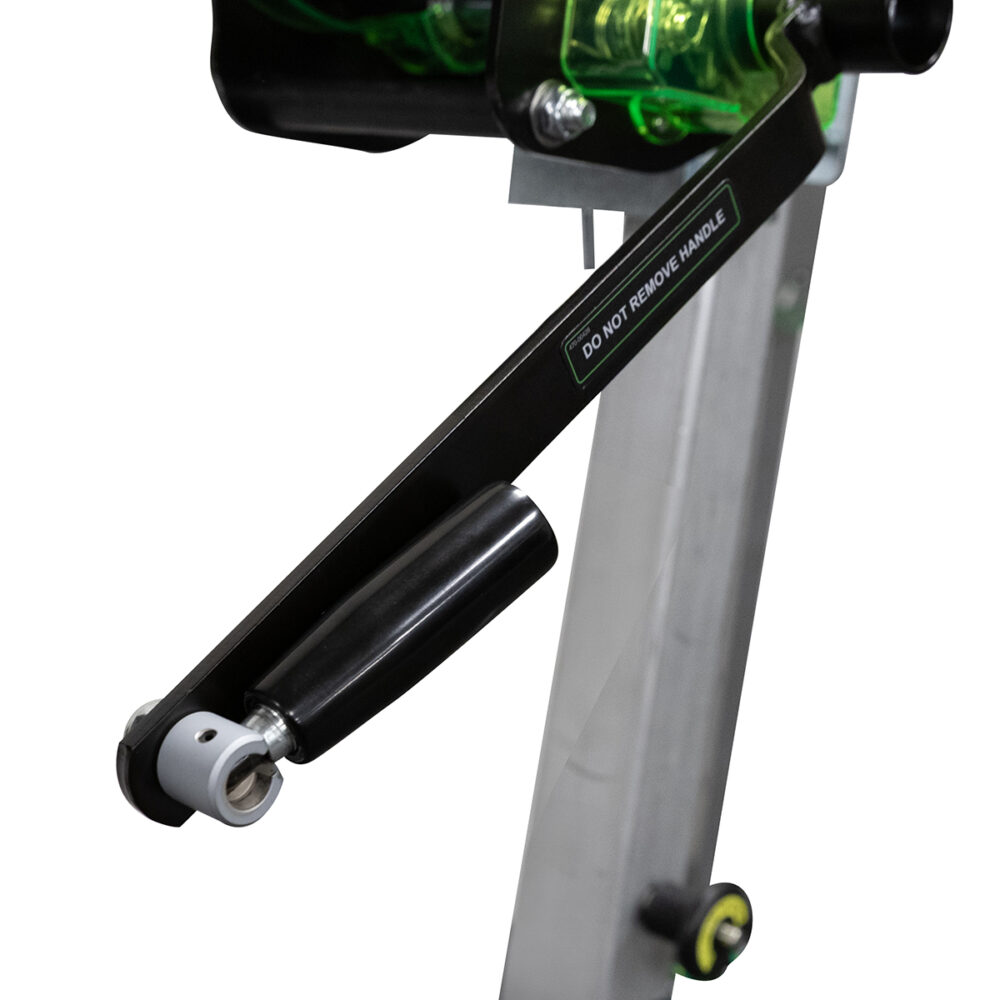

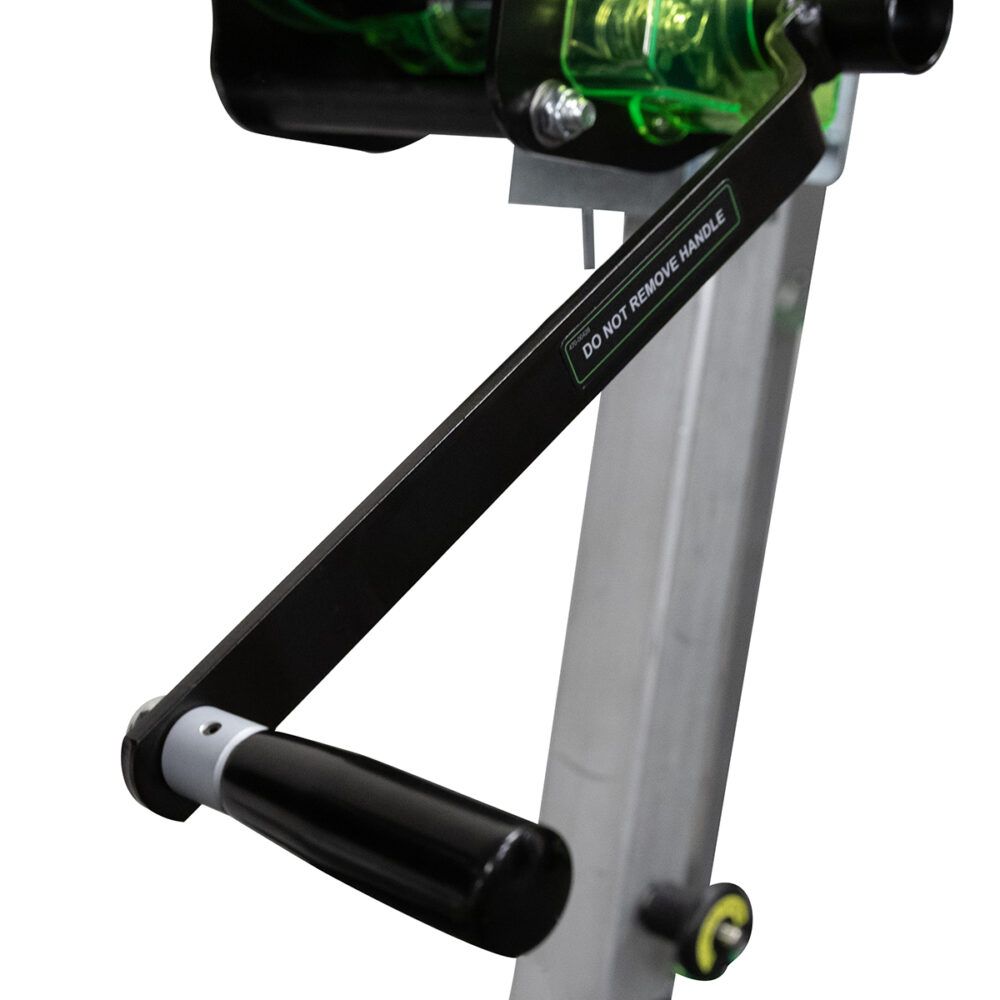

  • Extended handle provides improved leverage during operation
  • Integrated carrying handle for convenient transport
  • Corrosion-resistant galvanized steel cable
  • Equipped with mounting bracket for use with Safewaze tripod and Xtirpa system brackets (tripod and Xtirpa brackets sold separately)
  • Material lifting capacity of 420 lbs. (191 kg)
SKU: 024-11053 Categories: , ,

The Safewaze 65’ Mini Personnel Winch is a compact, economical solution designed for personnel riding applications in confined space and vertical access environments. Featuring a corrosion-resistant galvanized steel cable, transparent impact-resistant housing and an extended handle for improved leverage, this winch delivers smooth, reliable operation in a lightweight package. Engineered for ease of use and simple visual inspection, the Mini Personnel Winch keeps workers safe during jobs that require dependable personnel raising and lowering.

Mount

Universal

Specifications
Materials: 7/32" galvanized steel cable, aluminum, steel and stainless steel components
Weight: 20 lbs. (9 kg)
Working Length: 65’ (19.8 m)
Material Capacity: 420 lbs. (191 kg)
Attachment Point(s): Swivel Snap Hook
Max Operation Force: 30 lbs. (13.6 kg)
Max Service Interval: 10,000 cycles
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.4-2013, Z117.1-2022
OSHA Standards: 1926.502, 1910.66, 1910.140
