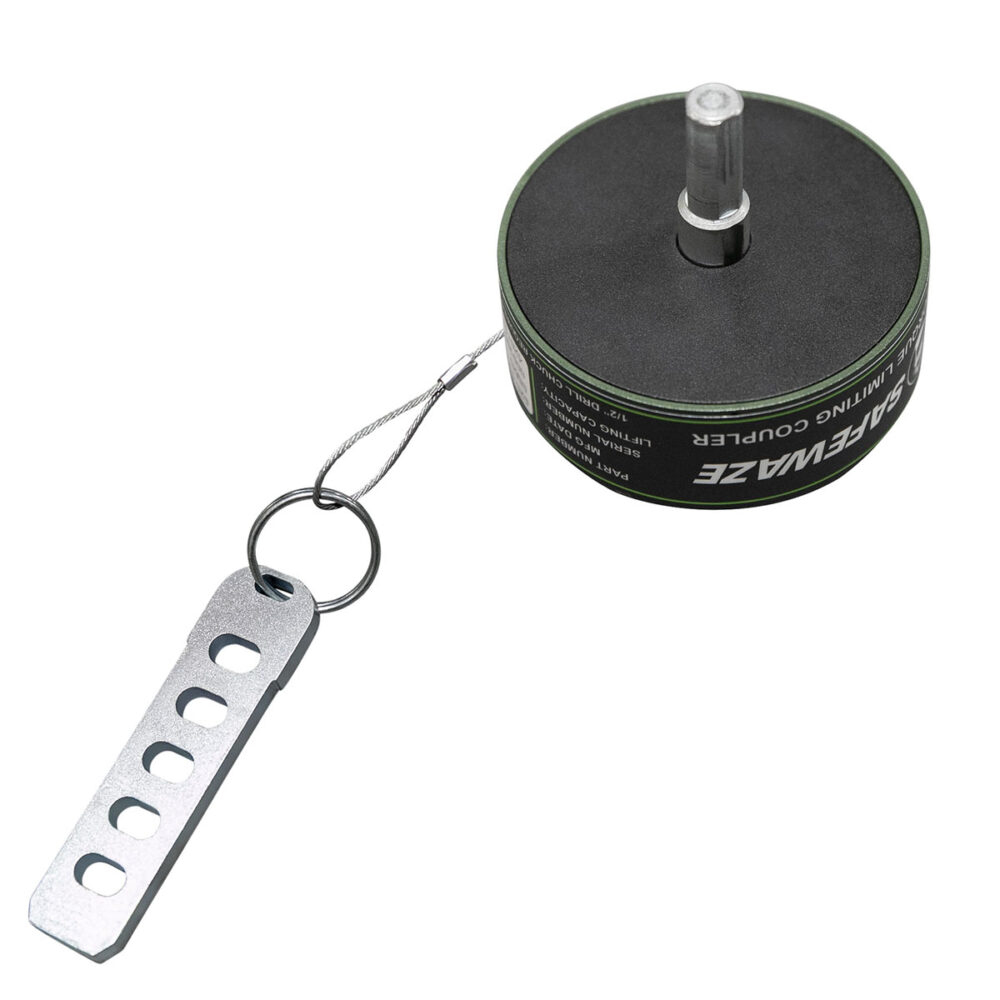

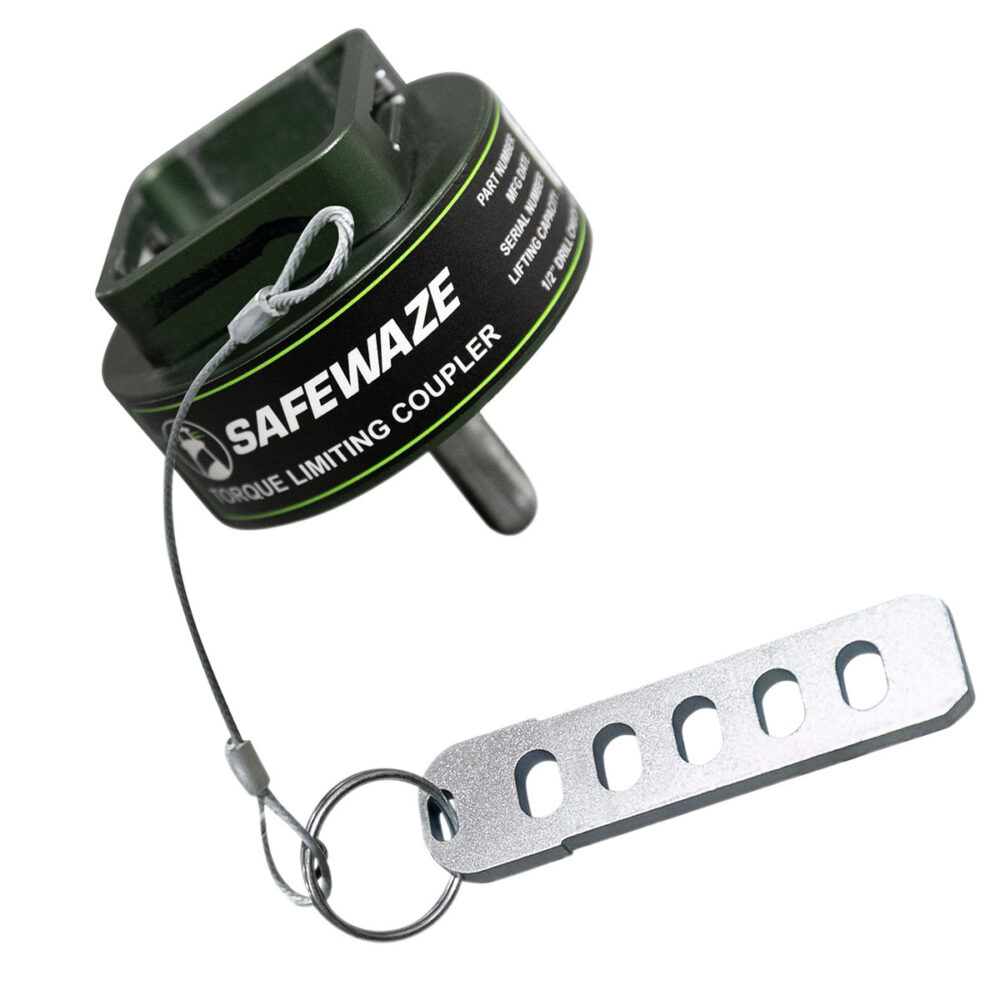

The Safewaze Torque Limiting Coupler (Technical Personnel Winch) is designed to safely control the powered operation of Safewaze Technical Personnel Winches. Engineered with an internal magnetic clutch system, this coupler helps prevent overloading during powered use while promoting long-term durability and consistent performance. Compatible with standard drills, the coupler installs quickly without special tools, providing controlled, efficient powered lifting and lowering in confined space and vertical access applications.
Torque Limiting Coupler
025-11059Torque Limiting Coupler
025-11059Components
The Safewaze Torque Limiting Coupler (Technical Personnel Winch) is designed to safely control the powered operation of Safewaze Technical Personnel Winches. Engineered with an internal magnetic clutch system, this coupler helps prevent overloading during powered use while promoting long-term durability and consistent performance. Compatible with standard drills, the coupler installs quickly without special tools, providing controlled, efficient powered lifting and lowering in confined space and vertical access applications.
Features:
- Designed to safely control powered operation of Safewaze Technical Personnel Winches (025-11055 and 025-11057)
- Internal magnetic clutch system promotes longevity and consistent torque performance
- Detent key design secures coupler to winch without additional hardware
- No special tools required – compatible with standard drill and ½″ drill chuck
- Designed for quick installation and removal in field applications
Specifications
| Materials: | Aluminum, Steel, Magnets |
| Weight: | 2.4 lbs. (1.1 kg) |
| Slip Force: | 420 lbs. (195 kg) +/-10 lbs. |
