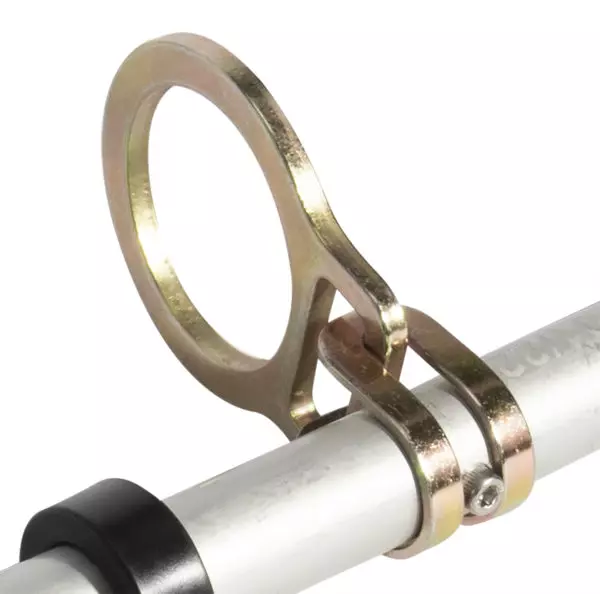

The Beam Walker Easy Slider offers a pivot D-ring, replacement jaw liners and smooth trailing plus hands-free mobility. This lightweight compact design can be used on overhead or foot level tie-off with one-handed trigger action and dual adjustment.
Beam Walker Easy Slider
Beam Walker Easy Slider
Steel
The Beam Walker Easy Slider offers a pivot D-ring, replacement jaw liners and smooth trailing plus hands-free mobility. This lightweight compact design can be used on overhead or foot level tie-off with one-handed trigger action and dual adjustment.
$0.00
Features:
- 180° rotating connection point
- Nylon rollers for more effective slide
- Replacement jaw liners extend product life
- Easy trailing for hands-free work
- Dual adjustment with jaws on both ends
- Easy, one-handed trigger allows for quick lock & release
- Lightweight aluminum construction
- Overhead and foot level tie-off
- Protective label cover to ensure compliance
- Fits flange up to 1.25″
- 180° rotating connection point
- Nylon rollers for more effective slide
- Replacement jaw liners extend product life
- Easy trailing for hands-free work
- Dual adjustment with jaws on both ends
- Easy, one-handed trigger allows for quick lock & release
- Lightweight aluminum construction
- Overhead and foot level tie-off
- Protective label cover to ensure compliance
- Fits flange up to 2.6″
- 180° rotating connection point
-
Nylon rollers for more effective slide
-
Replacement jaw liners extend product life
-
Easy trailing for hands-free work
-
Dual adjustment with jaws on both ends
-
Easy, one-handed trigger allows for quick lock & release
-
Lightweight aluminum construction
-
Overhead and foot level tie-off
-
Protective label cover to ensure compliance
-
Fits flange up to 1.25"
Related products
-
021-4041
-
018-4001
-
021-4047
Specifications
| Materials: | Aluminum crossbar, stainless steel D-ring bracket, bronze clamps, zinc-plated steel D-ring, spring and hardware |
| Weight: | 3.5 lbs. (1.6 kg) |
| Overall Length: | 19.5" |
| Beam Flange Width Range: | 3.5"-14" |
| Beam Flange Thickness: | Up to 1.25" |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 |
| OSHA Standards: | 1926.502, 1910.140 |
| Materials: | Aluminum crossbar, stainless steel D-ring bracket, bronze clamps, zinc-plated steel D-ring, spring and hardware |
| Weight: | 5.2 lbs. (2.3 kg) |
| Overall Length: | 37” |
| Beam Flange Width Range: | 12"-30" |
| Beam Flange Thickness: | Up to 2-5/8” |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 |
| OSHA Standards: | 1926.502, 1910.140 |
| Materials: | Aluminum crossbar, stainless steel D-ring bracket, bronze clamps, zinc-plated steel D-ring, spring and hardware |
| Weight: | 3.5 lbs. (1.6 kg) |
| Overall Length: | 19.5" |
| Beam Flange Width Range: | 3.5"-14" |
| Beam Flange Thickness: | Up to 1.25" |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 |
| OSHA Standards: | 1926.502, 1910.66 |
