The Strut Anchor has interlocking plates that are fastened together making installation so simple it can be done one-handed. Just slide the 1-piece anchor into the strut and lock plates. Add the carabiner (included) and check connection – the red warning stripes act as clear visual indicators for proper installation. Smooth sliding action allows user to work hands-free.

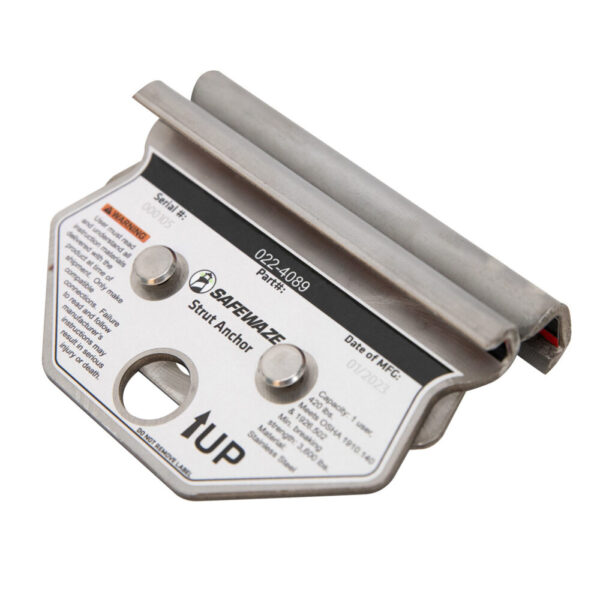

Strut Anchor
022-4089
Strut Anchor
022-4089Specialty
The Strut Anchor has interlocking plates that are fastened together making installation so simple it can be done one-handed. Just slide the 1-piece anchor into the strut and lock plates. Add the carabiner (included) and check connection – the red warning stripes act as clear visual indicators for proper installation. Smooth sliding action allows user to work hands-free.
Features:
-
Easy to install: insert in strut, lock plates, secure carabiner
-
Permanently attached plates with smooth locking action avoids loose parts
-
Anchor slides horizontally along strut for hands-free work
-
Red warning stripe visually reinforces proper installation
-
Compatible with standard 1-5/8 in., 12 gauge or thicker strut channel
-
For overhead use only in a pre-installed, closed strut
-
Carabiner included
Related products
-
021-4043
-
024-4110
-
Knock-Down Roof Anchor
This product has multiple variants. The options may be chosen on the product page
Specifications
| Materials: | Stainless steel anchor, YCM steel carabiner |
| Weight: | 1.25 lbs. (0.6 kg) |
| Anchor Dimensions: | 4" x 2.5" x 1.25" |
| Minimum Breaking Strength: | 3,600 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1910.140, 1926.502, 1910.66 |
