The Parapet Wall Anchor installs easily onto existing parapet walls without need for additional tools or wall surface penetration. Suitable as an anchor for work positioning or descent off a building roof, or as anchor in your personal fall arrest system.
Parapet Wall Anchor
Parapet Wall Anchor
Specialty
The Parapet Wall Anchor installs easily onto existing parapet walls without need for additional tools or wall surface penetration. Suitable as an anchor for work positioning or descent off a building roof, or as anchor in your personal fall arrest system.
Features:
- Non-penetrating rubber padded design eliminates parapet wall damage
- (2) tightening handles for even force distribution on parapet wall
- High strength steel construction with built-in D-ring
- Portable and reusable
- Accommodates 1.25″ to 14″ concrete parapet or jersey wall thickness
- 1.25” minimum length ideal for trench boxes and similar thin load rated structures
- Non-penetrating rubber padded design eliminates parapet wall damage
- (2) tightening handles for even force distribution on parapet wall
- High strength steel construction with built-in D-ring
- Portable and reusable
- Accommodates 1.25″ to 21.5″ concrete parapet wall thickness
-
Extended 21.5” length for use on thicker parapet, shoring walls and Jersey barriers
-
1.25” minimum length ideal for trench boxes and similar thin load rated structures
- Non-penetrating rubber padded design eliminates parapet wall damage
- (2) tightening handles for even force distribution on parapet wall
- High strength steel construction with built-in D-ring
- Portable and reusable
- Accommodates 1.25" to 14″ concrete parapet or jersey wall thickness
Related products
-
Drop-Through Cable Anchor
This product has multiple variants. The options may be chosen on the product page -
FS-EX310-1
-
Scaffold Davit Anchor
This product has multiple variants. The options may be chosen on the product page
Specifications
| Materials: | Powder-coated and zinc-plated steel, stainless steel, plastic, composite rubber |
| Weight: | 20 lbs. (9.1 kg) |
| Length: | 22" (558 mm) |
| Height: | 14" (355 mm) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Minimum Parapet Height Installation: | 8.6" (218.4 mm) |
| Materials: | Powder-coated and zinc-plated steel, stainless steel, plastic, composite rubber |
| Weight: | 23.8 lbs (10.8 kg) |
| Length: | 30.6 (778 mm) |
| Height: | 14" (355 mm) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Minimum Parapet Height Installation: | 8.6" (218.4 mm) |
| Materials: | Powder-coated and zinc-plated steel, stainless steel, plastic, composite rubber |
| Weight: | 20 lbs. (9.1 kg) |
| Length: | 22" (558 mm) |
| Height: | 14" (355 mm) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Minimum Parapet Height Installation: | 8.6" (218.4 mm) |
Related Products
Related products
-

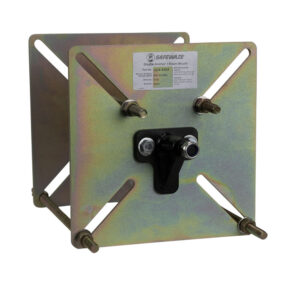

024-4124
-
