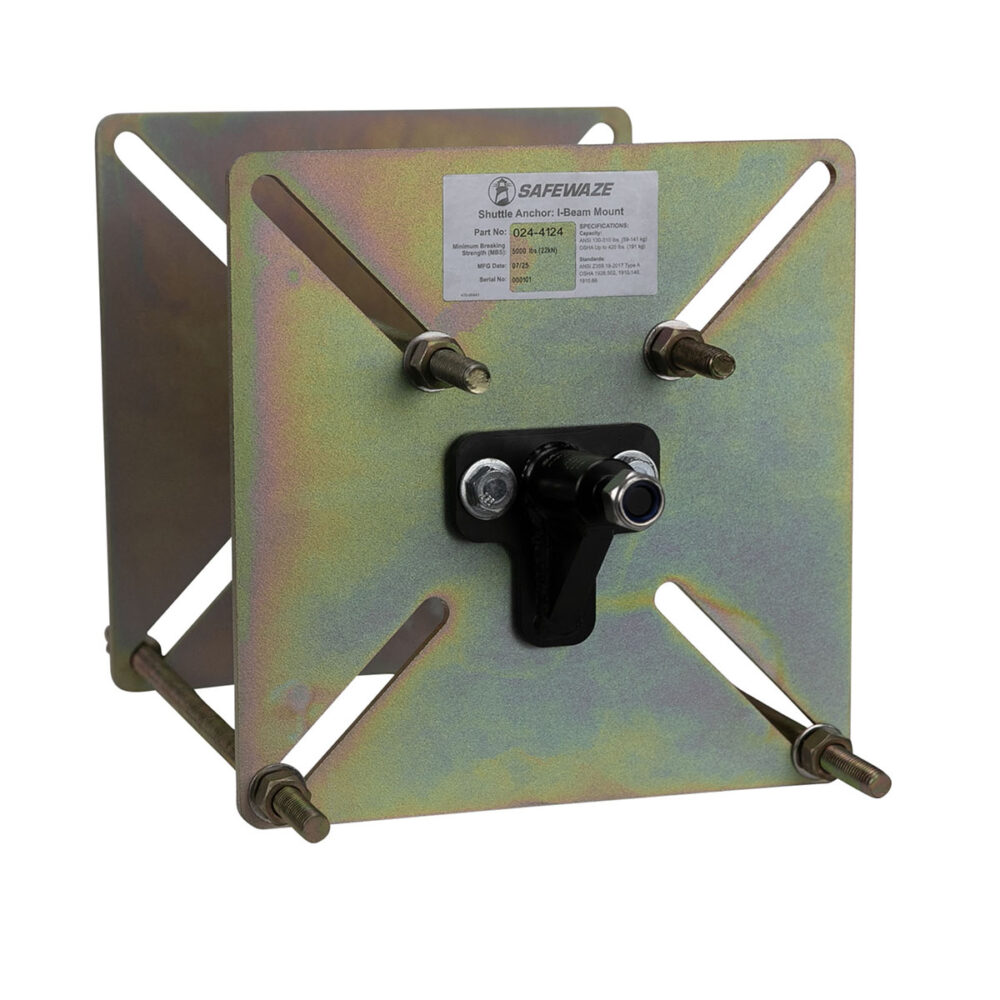

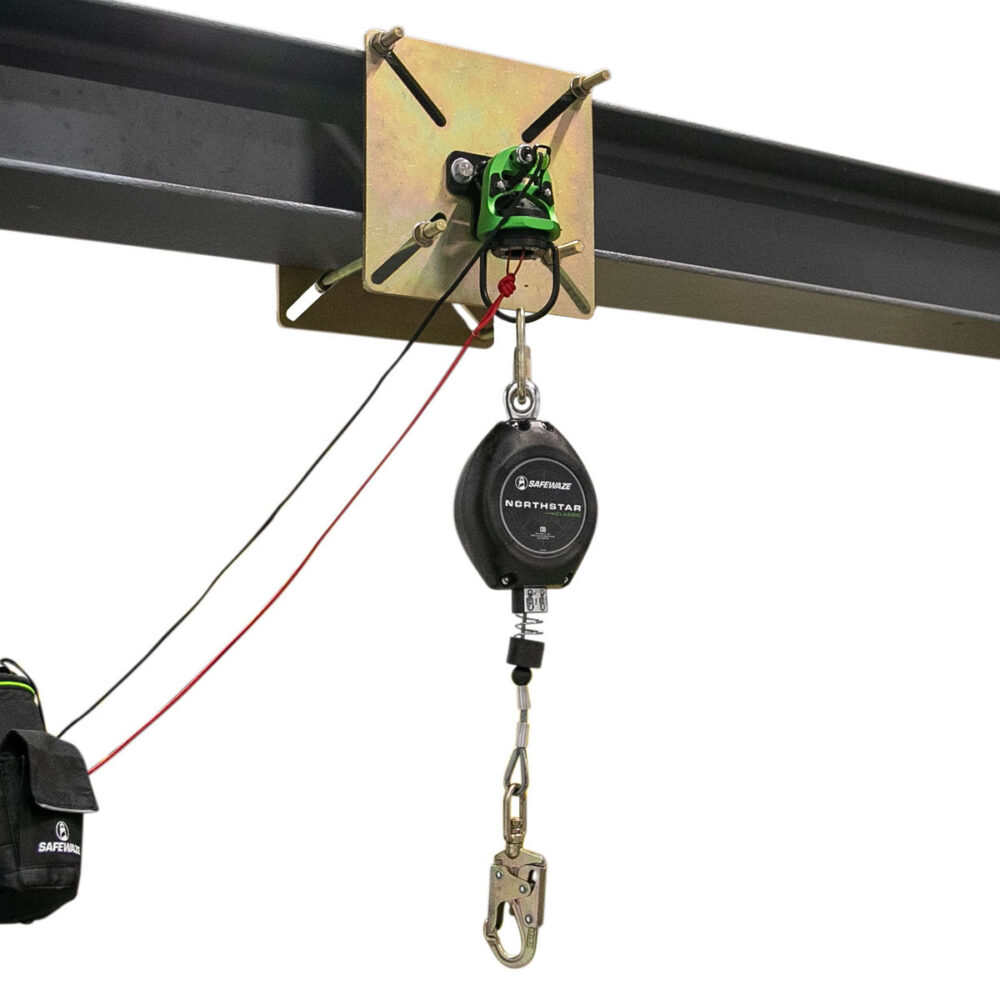

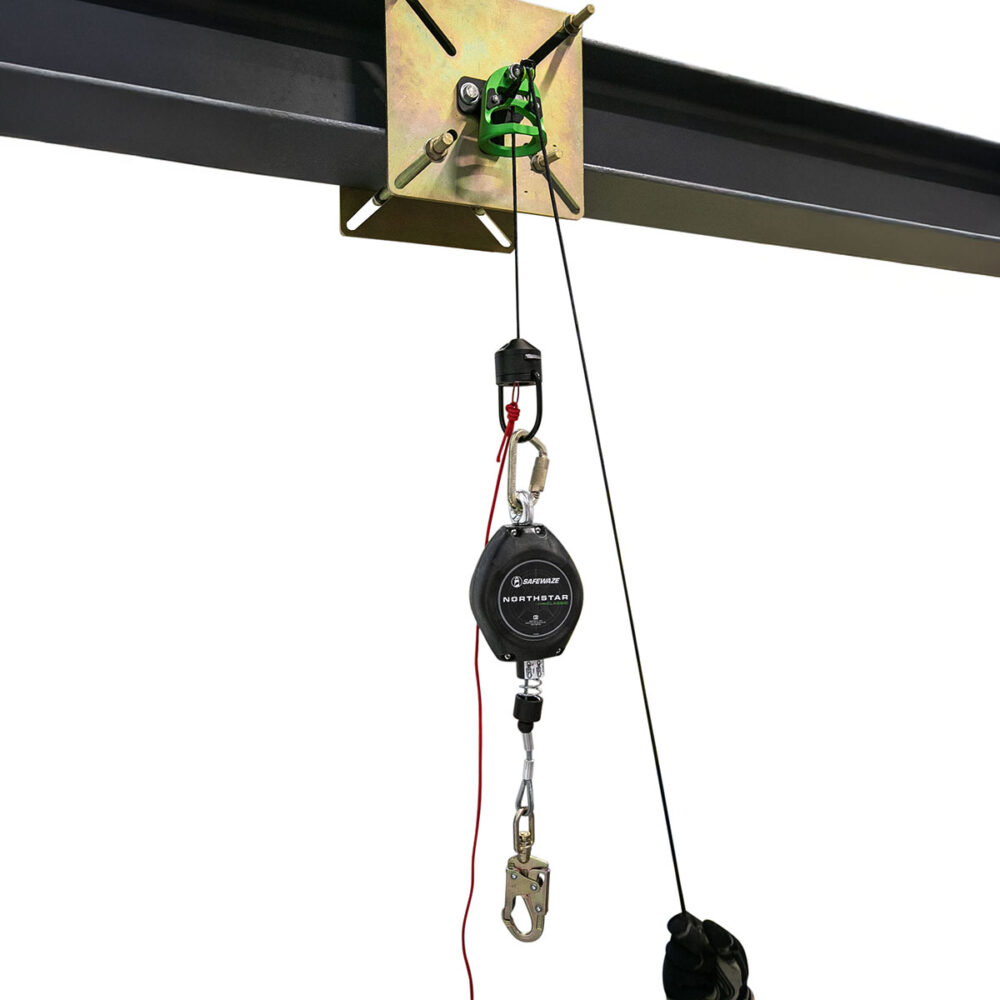

The Shuttle Anchor: I-Beam Mount provides a secure, fixed attachment point for the Shuttle Anchor on a wide range of horizontal or vertical I-beams. Designed for flexibility across different beam sizes, it installs easily using the included hardware and creates a reliable mounting location for raising and lowering SRLs, lanyards and VLLs with the Shuttle Anchor (023-4105). Ideal for facilities needing a durable, long-term overhead anchor solution.
Shuttle Anchor: I-Beam Mount
024-4124Shuttle Anchor: I-Beam Mount
024-4124Specialty
The Shuttle Anchor: I-Beam Mount provides a secure, fixed attachment point for the Shuttle Anchor on a wide range of horizontal or vertical I-beams. Designed for flexibility across different beam sizes, it installs easily using the included hardware and creates a reliable mounting location for raising and lowering SRLs, lanyards and VLLs with the Shuttle Anchor (023-4105). Ideal for facilities needing a durable, long-term overhead anchor solution.
Features:
- Creates a permanent mounting point for the Shuttle Anchor (023-4105)
- Fits common I-Beam sizes (4"-10” height, up to 11.5” flange width) for flexible installation across multiple structures

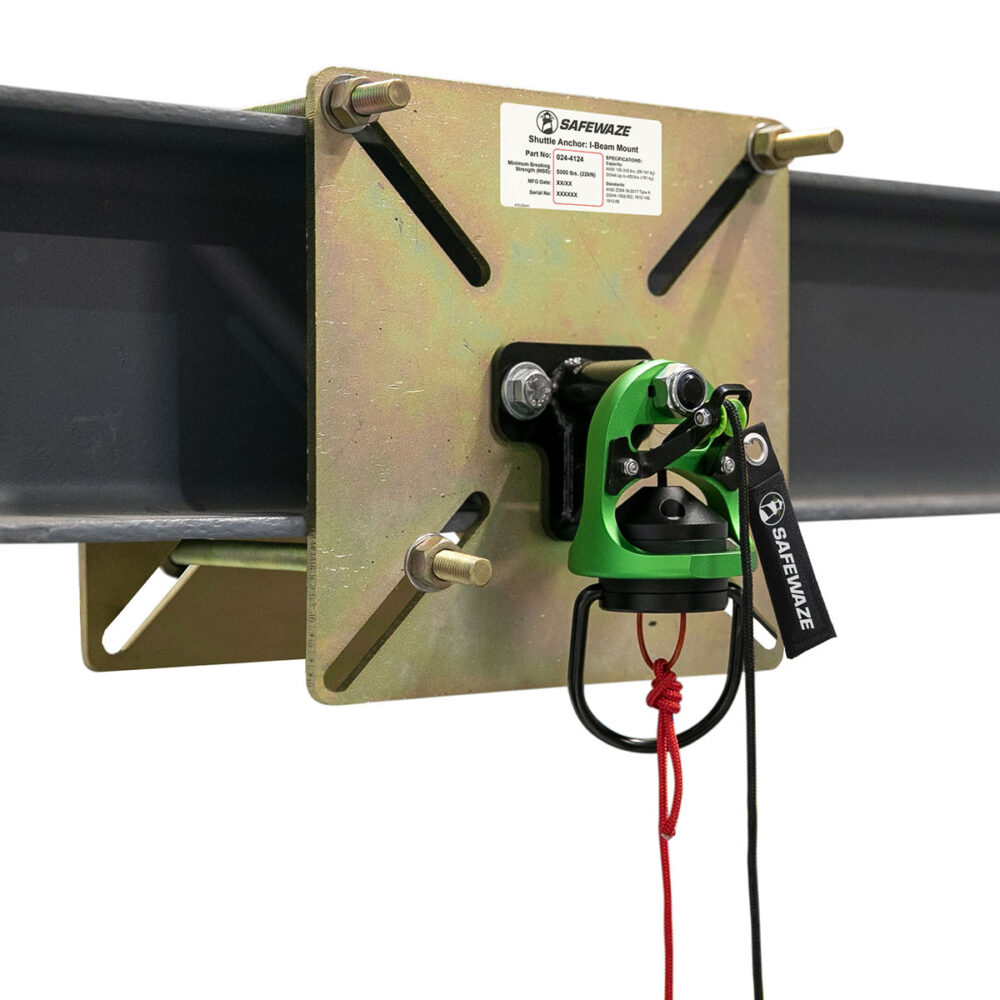

- Mounts to horizontal or vertical I-Beams for versatile installation locations

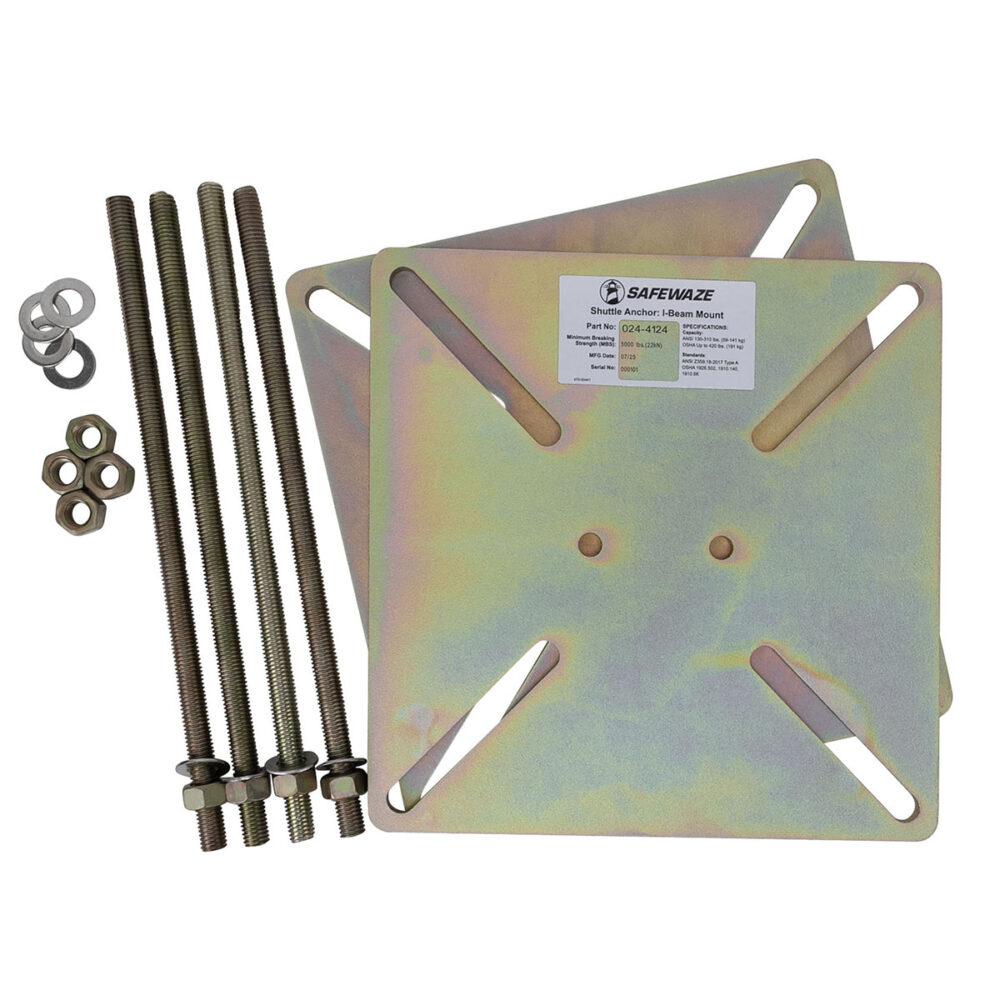

- Includes all required hardware
- Durable, plated-steel construction resists corrosion for long service life
- Permanent, bolt-on installation creates a stable, secure anchor point
- For use with Shuttle Anchor only; not for fall protection use without the anchor (sold separately)
Specifications
| Materials: | YCM-Plated Steel, Zinc-plated and EP-coated steel |
| Weight: | 27.6 lbs. (12.5 kg) |
| Dimensions: | For I-Beams with a height between 4"-10” and max width of 11.5” |
| Minimum Breaking Strength: | 5,000 lbs. (22kN) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
