The Shuttle Anchor is a lightweight, semi-permanent overhead anchoring solution designed to make managing SRLs, lanyards and VLLs easier, safer, and more efficient. Using a simple pull-cord system, workers can raise and lower fall arresters from the ground, eliminating the need to climb or leave equipment exposed to weather. Its premium aluminum and stainless-steel construction provides long-lasting durability, while optional mounting brackets allow the Shuttle Anchor to be used on a wide range of structures.

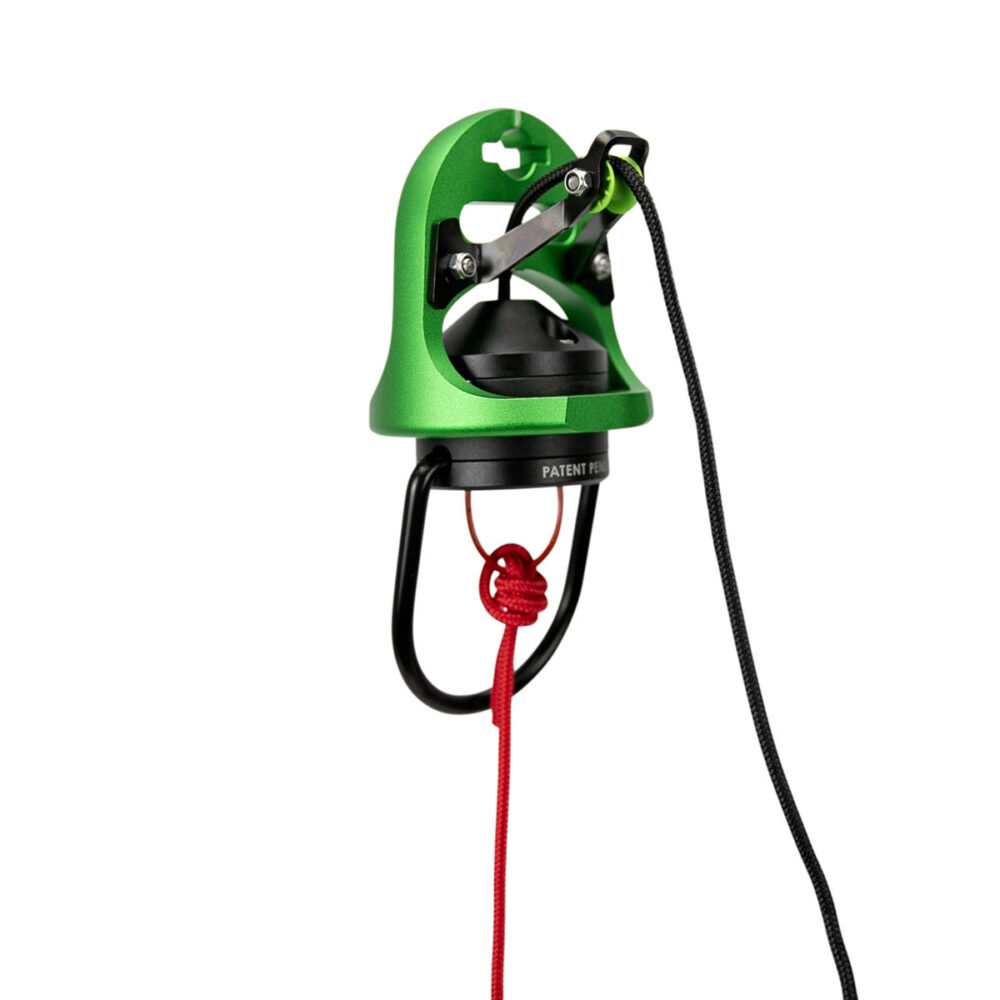

Shuttle Anchor
023-4105
Shuttle Anchor
023-4105Specialty
The Shuttle Anchor is a lightweight, semi-permanent overhead anchoring solution designed to make managing SRLs, lanyards and VLLs easier, safer, and more efficient. Using a simple pull-cord system, workers can raise and lower fall arresters from the ground, eliminating the need to climb or leave equipment exposed to weather. Its premium aluminum and stainless-steel construction provides long-lasting durability, while optional mounting brackets allow the Shuttle Anchor to be used on a wide range of structures.
Features:
- Semi-permanent anchor point for quick, repeatable access without reinstalling
- Raise and lower SRLs, lanyards and VLLs from the ground to reduce climbing and protect equipment from weather
- Lightweight, compact design makes it easy to carry and set up to any existing anchor point
- Corrosion-resistant aluminum and stainless steel for long-lasting performance in harsh environments
- Includes a Shuttle Bag (025-9106) to keep excess tagline contained and reduce snags, plus a magnetic carabiner for quick attachment to any surface
- Connects to existing anchor points via carabiner for quick installation (carabiner not included)
- Option to bolt to rated structure using compatible bracket for secure, fixed installations (Shuttle Anchor: Bolt-on Bracket (024-4121), sold separately)
- Option to bolt to I-Beams using compatible mount for secure, fixed installations (Shuttle Anchor: I-Beam Mount (024-4124), sold separately)
| Type | Permanent, Temporary, Temporary/Permanent |
|---|---|
| New Product | Yes |
Related products
-
Parapet Wall Anchor
This product has multiple variants. The options may be chosen on the product page -
023-24010
-
024-4121
Specifications
| Materials: | Steel, stainless steel, aluminum and nylon |
| Weight: | 2.8 lbs. (1.3 kg) |
| Attachment Points: | 1 D-ring |
| Minimum Breaking Strength: | 5,000 lbs. (22kN) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Working Load Limit: | 1,000 lbs. (453.6 kg) |
