Standing Seam HLL Anchor

025-4129

Standing Seam HLL Anchor

025-4129

Roofing

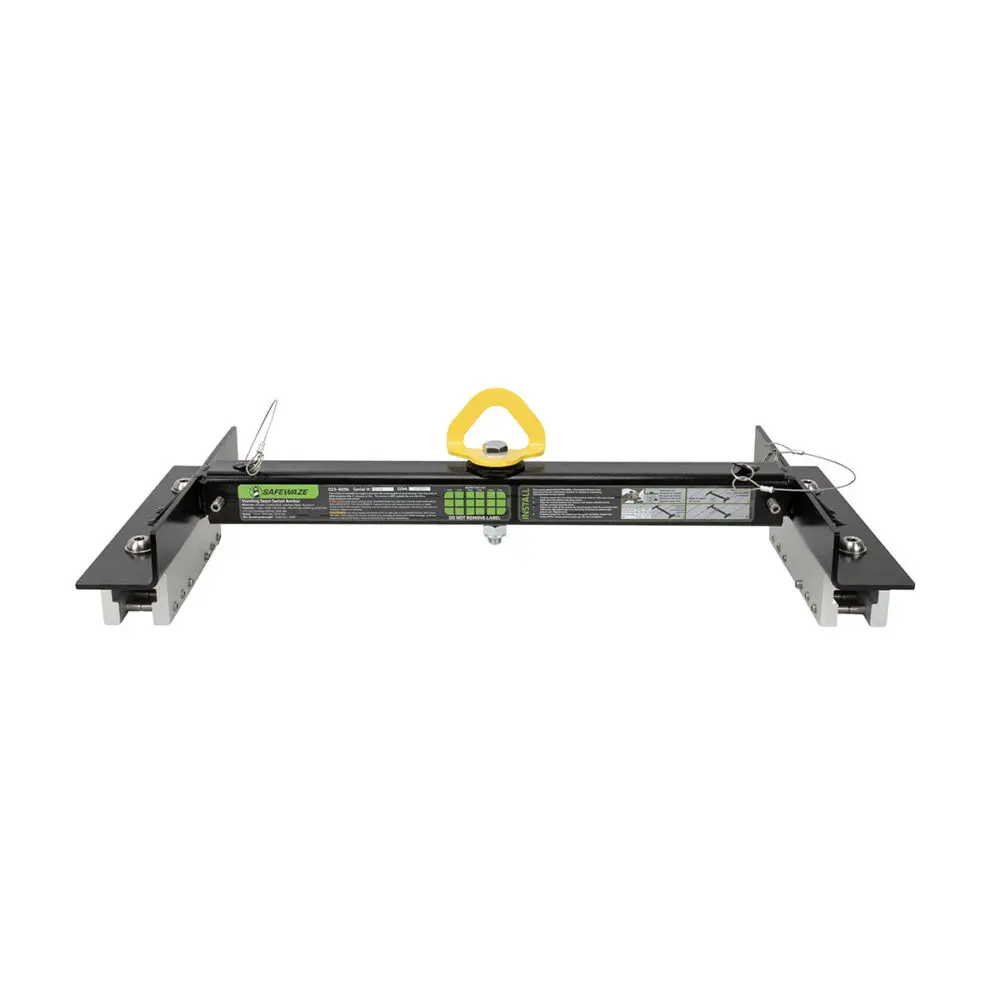

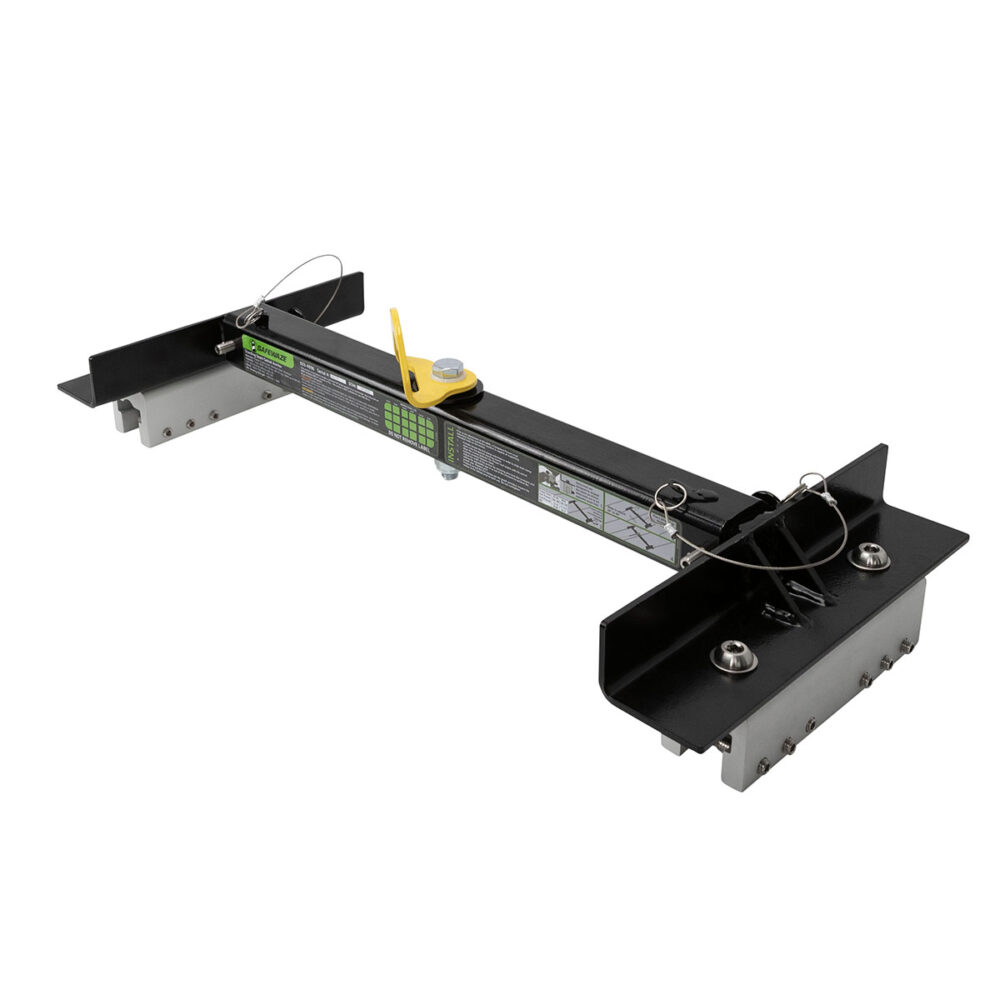

The Safewaze Standing Seam HLL Anchor is a reusable, non-penetrating anchorage solution designed for use on standing seam metal roofs. Built to accommodate a wide range of seam profiles, this anchor utilizes dual clamp assemblies with pre-installed steel set screws to provide a secure, reliable connection without damaging the roof surface. The integrated 360° swivel D-ring allows for smooth connection and mobility when used as part of a horizontal lifeline system. Designed for both flat and pitched standing seam applications, this anchor delivers dependable performance for fall protection and HLL setups.

Features:

  • Easy to install, reusable non-penetrating anchor point
  • Designed for flat or pitched standing seam roofs minimum gauge 26

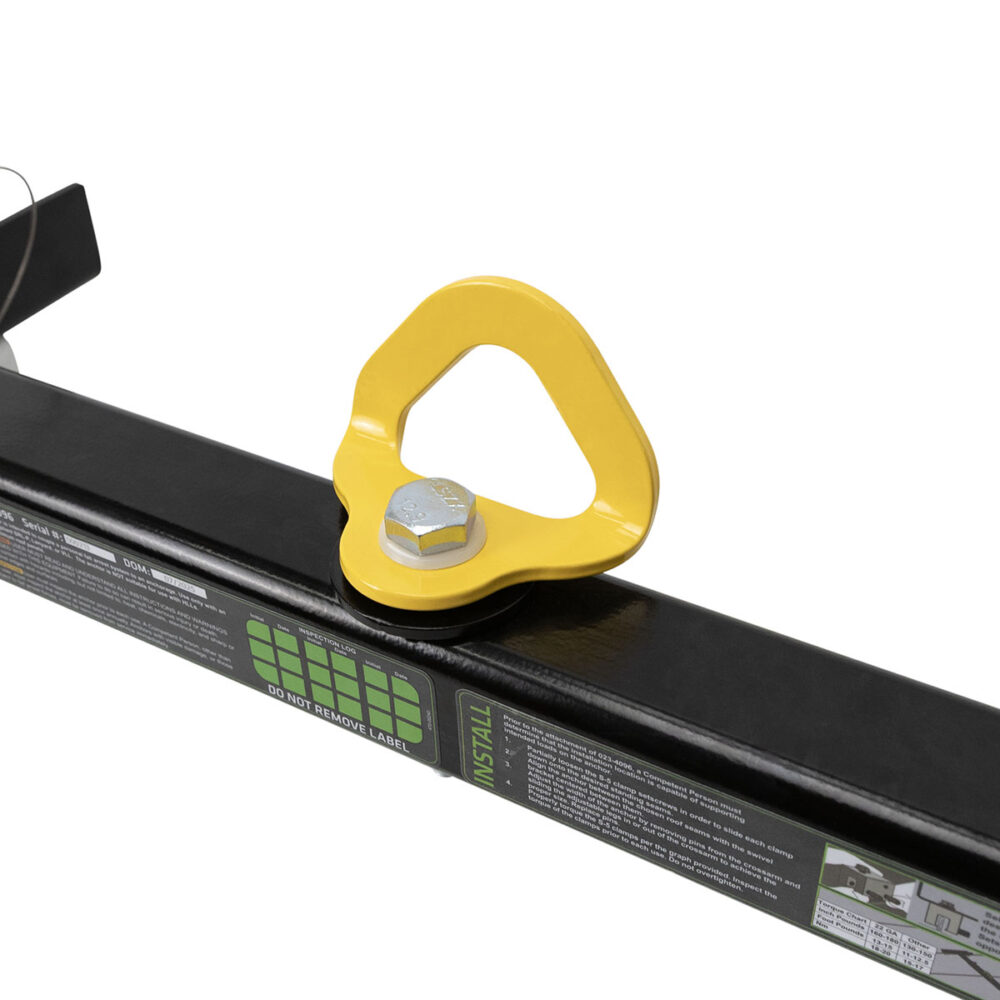

  • 360° swivel D-ring connection point for SRLs, energy absorbing lanyards, HLLs and VLLs

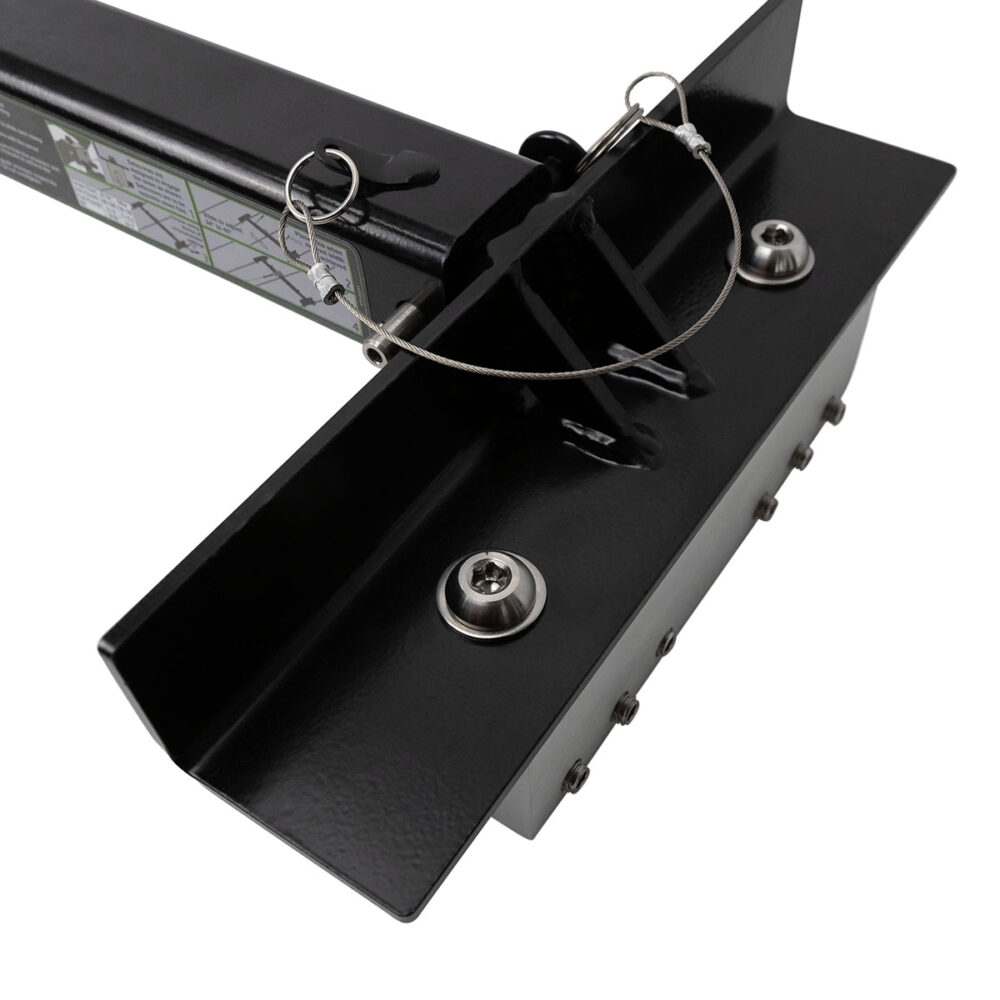

  • Includes (2) clamps with steel set screws pre-installed
  • Adjustable crossarm spans 24"-40" and locks with detent pins
  • Designed for HLL applications requiring multi-user anchorage support
SKU: 025-4129 Categories: , ,

The Safewaze Standing Seam HLL Anchor is a reusable, non-penetrating anchorage solution designed for use on standing seam metal roofs. Built to accommodate a wide range of seam profiles, this anchor utilizes dual clamp assemblies with pre-installed steel set screws to provide a secure, reliable connection without damaging the roof surface. The integrated 360° swivel D-ring allows for smooth connection and mobility when used as part of a horizontal lifeline system. Designed for both flat and pitched standing seam applications, this anchor delivers dependable performance for fall protection and HLL setups.

New Product

Yes

Type

Temporary

Specifications
Attachment Points: D-ring
Weight: 24.9 lbs. (11.3 kg)
Materials: Powder coated steel, stainless steel, aluminum
Minimum Breaking Strength: 5,000 lbs. (22 kN)
System Capacity: 1 user as single point anchor, 2 users per span for HLLs
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
OSHA Standards: 1926.502, 1910.140, 1910.66
