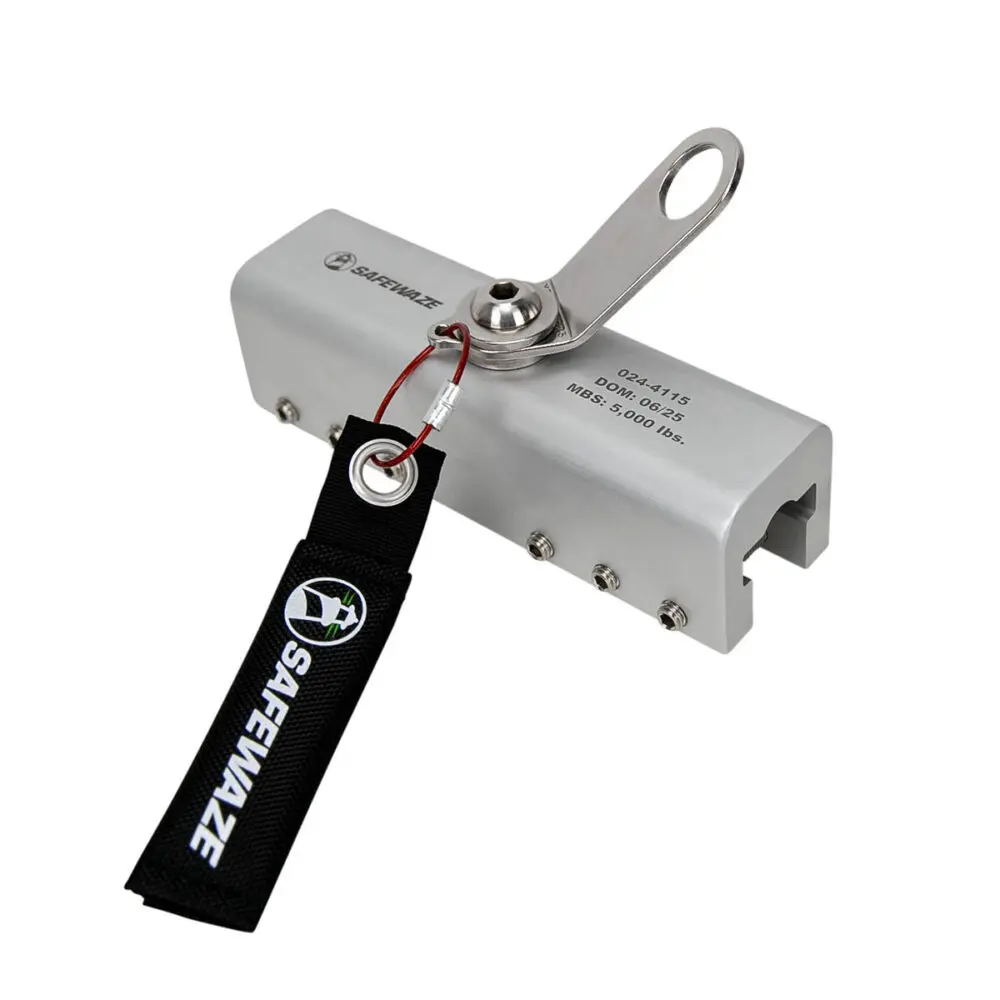

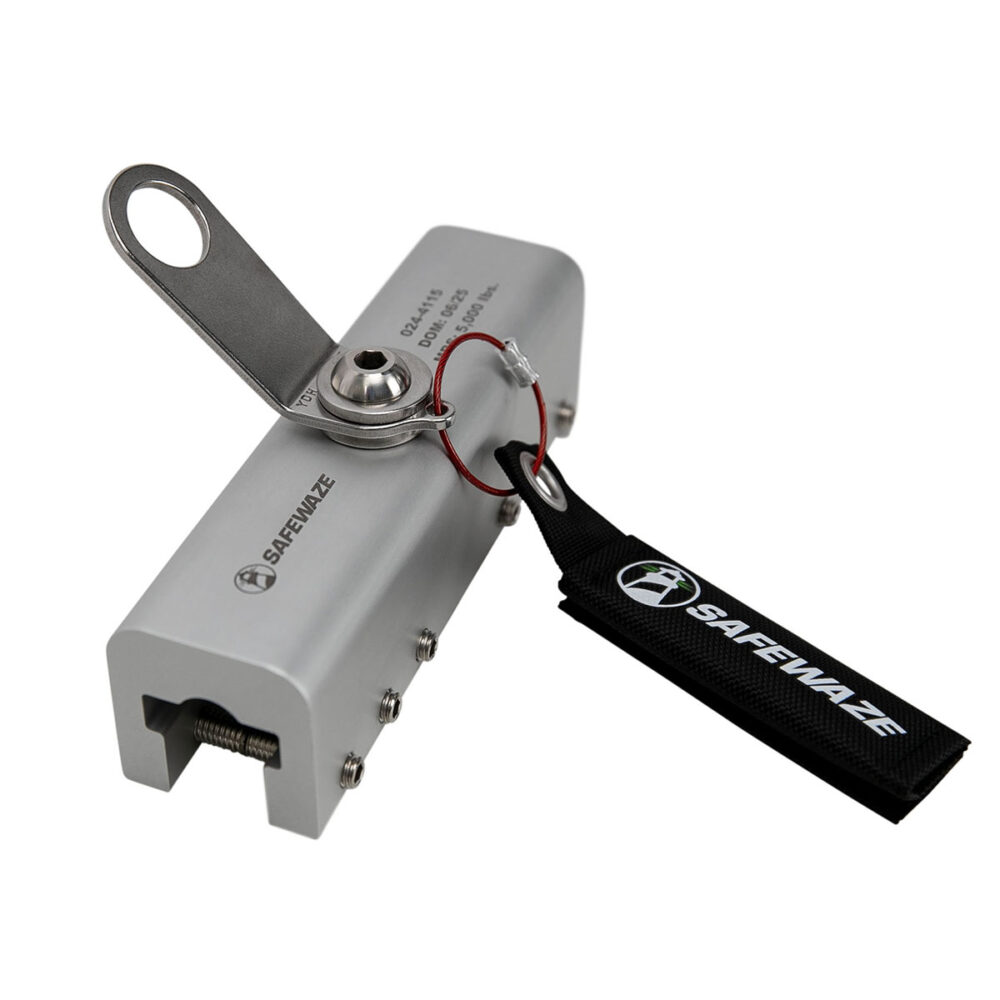

The Standing Seam Bar Anchor with Steel Screws provides a secure, reusable anchorage solution for standing seam metal roofs without penetrating the roof surface. Designed for fast installation and removal, this non-penetrating anchor helps protect roof integrity while providing a reliable tie-off point for fall protection systems. Featuring a 360° swivel D-ring connection point, the anchor allows smooth movement and compatibility with SRLs, EA lanyards and VLLs. Suitable for use on sloped or flat standing seam roofs.
Standing Seam Bar Anchor: Steel Screws
024-4115
Standing Seam Bar Anchor: Steel Screws
024-4115Roofing
The Standing Seam Bar Anchor with Steel Screws provides a secure, reusable anchorage solution for standing seam metal roofs without penetrating the roof surface. Designed for fast installation and removal, this non-penetrating anchor helps protect roof integrity while providing a reliable tie-off point for fall protection systems. Featuring a 360° swivel D-ring connection point, the anchor allows smooth movement and compatibility with SRLs, EA lanyards and VLLs. Suitable for use on sloped or flat standing seam roofs.
Features:
-
Easy to install, reusable non-penetrating anchor point

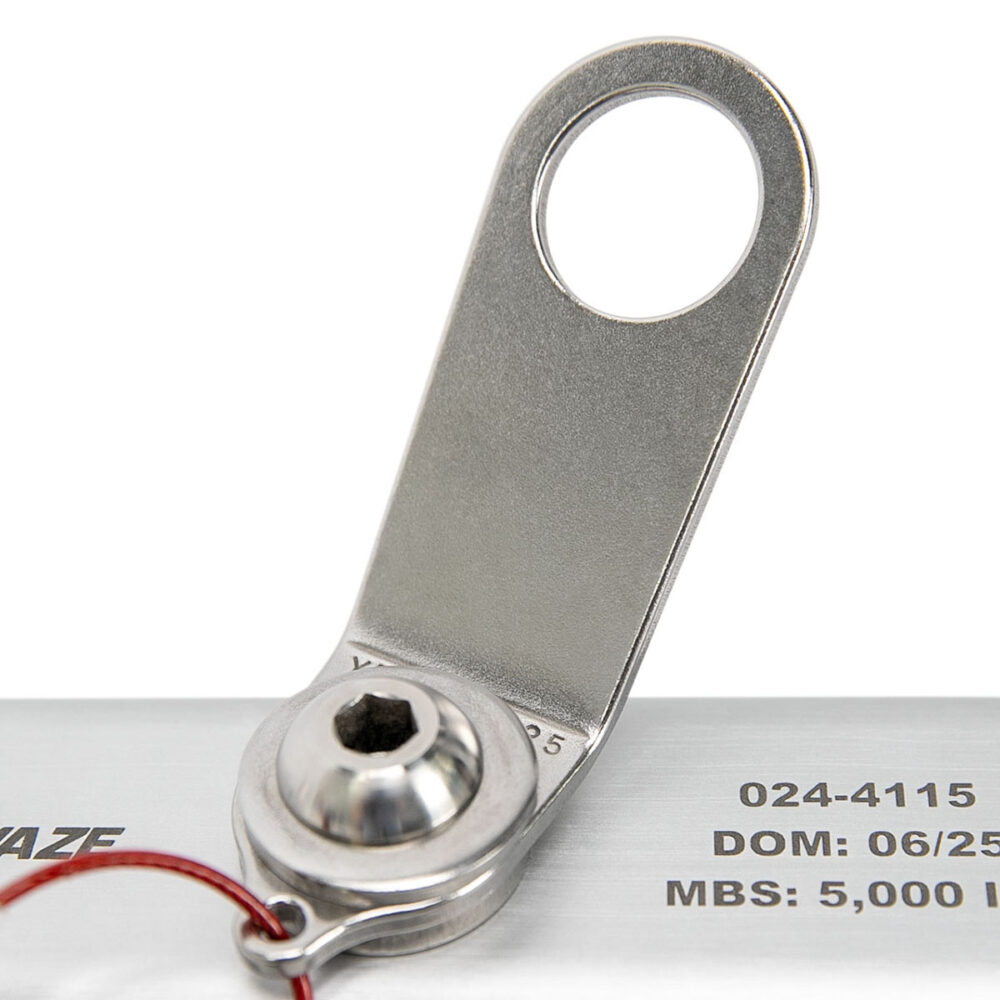

- 360° swivel D-ring connection point for SRLs, EA lanyards and VLLs
- For sloped or flat standing seam roofs with minimum gauge 26
- Compatible with a wide range of metal standing seam roof profiles
- Compact, low-profile design
Related products
-
019-4005
-
019-21001
-
021-4067
Specifications
| Materials: | Aluminum, Stainless Steel, Polyester |
| Weight: | 3 lbs. (1.4 kg) |
| Dimensions: | 8” x 2.5” x 4.5” (20x6x11.5 cm) |
| Attachment Point: | Swivel D-ring |
| Minimum Breaking Strength: | 5,000 lbs. (22 kN) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| 1 User Maximum | |
| Comes with (12) Stainless steel set screws | |
| Not for use with HLLs or for Material Hauling |
