The Safewaze Purlin Anchor is engineered for upright or inverted installation on both C and Z-purlins, providing a durable anchorage point for new construction and continued rooftop access. In the event of a fall, its captive eye is designed to deform and absorb energy, helping manage fall forces while reducing stress on the roof structure.
Purlin Anchor
025-4130
Purlin Anchor
025-4130Roofing
The Safewaze Purlin Anchor is engineered for upright or inverted installation on both C and Z-purlins, providing a durable anchorage point for new construction and continued rooftop access. In the event of a fall, its captive eye is designed to deform and absorb energy, helping manage fall forces while reducing stress on the roof structure.
Features:
- Installs on 12-16 gauge C and Z-purlins
- Supports upright rooftop installation and inverted installation from beneath the roof structure
- Suitable for exterior rooftop work and interior underside applications
- Design supports continued access and long-term use

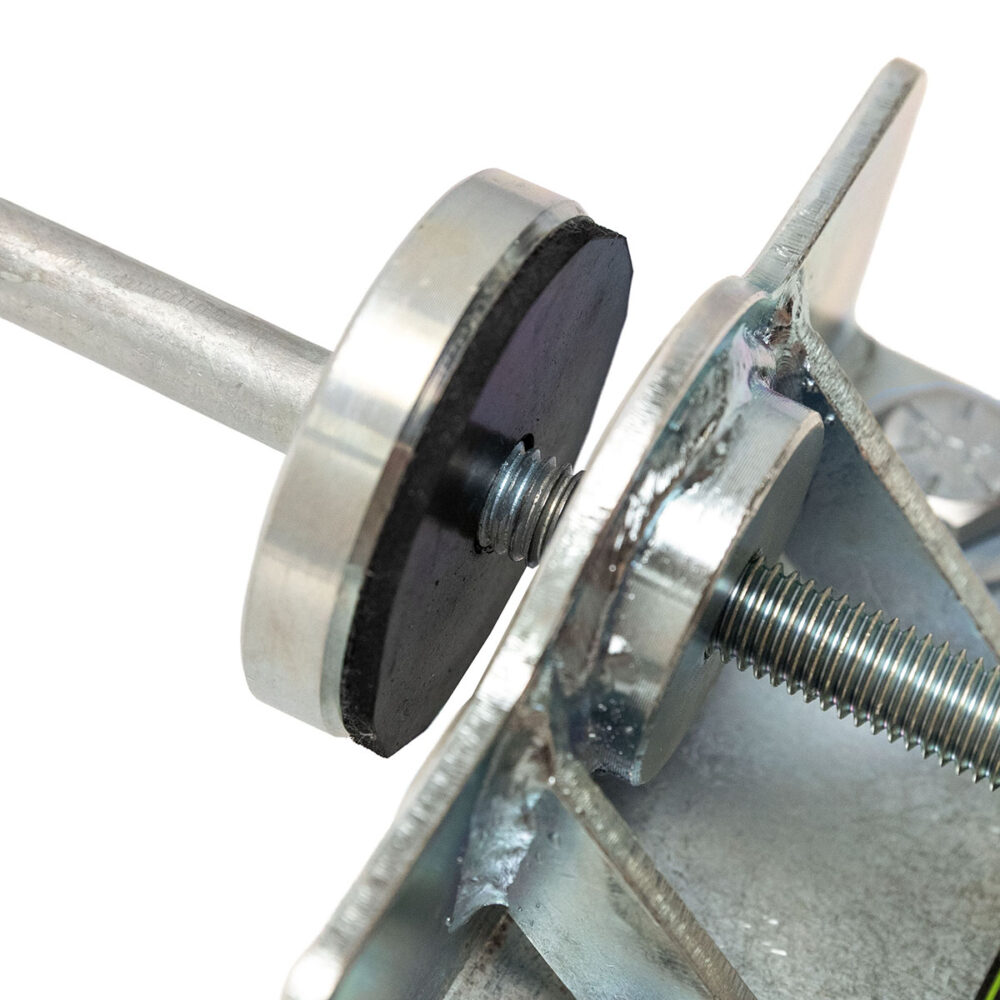

- NBR foam gasket helps seal the installation point against moisture, dirt and debris
- Permitted for horizontal lifeline (HLL) use only when installed in the upright rooftop orientation
- Ideal for new construction, residential roofing and commercial applications
Related products
-
020-16001
-
Knock-Down Roof Anchor
This product has multiple variants. The options may be chosen on the product page -
018-4000
Specifications
| Material(s): | Zinc-Plated Steel, NBR foam |
| Weight: | 7.4 lbs. (3.4 kg) |
| Dimensions: | 14.25" x 5.75" x 4.25" (36.2 cm x 14.6 cm x 10.8 cm) |
| Attachment Point(s): | Captive eye |
| Minimum Breaking Strength: | 5,000 lbs. (22 kN) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Must be installed within 12" of the I-beam support |
