The Purlin Anchor Captive Eye Replacement for the Safewaze Purlin Anchor is designed for straightforward installation. It replaces a worn captive eye while allowing the anchor body to remain in place increasing product longevity and value.

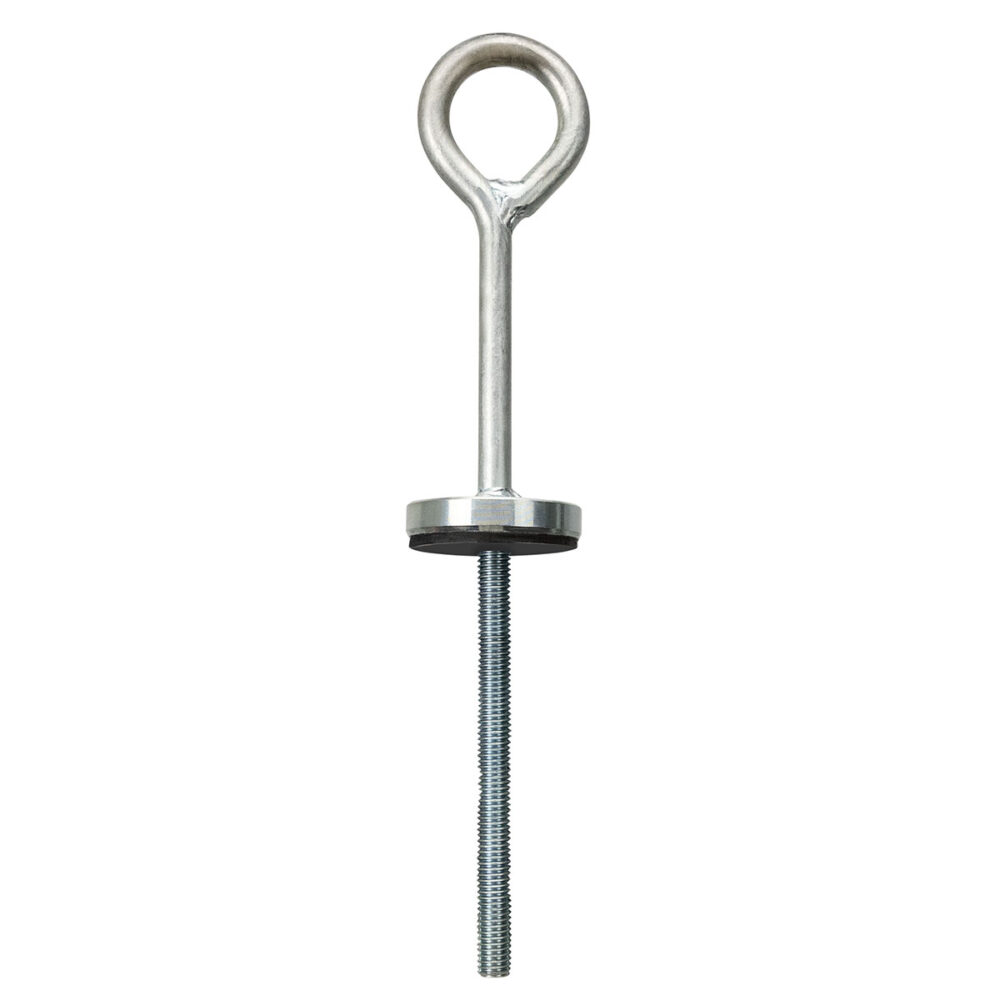

Purlin Anchor Captive Eye Replacement
026-4144
Purlin Anchor Captive Eye Replacement
026-4144Roofing
The Purlin Anchor Captive Eye Replacement for the Safewaze Purlin Anchor is designed for straightforward installation. It replaces a worn captive eye while allowing the anchor body to remain in place increasing product longevity and value.
Features:

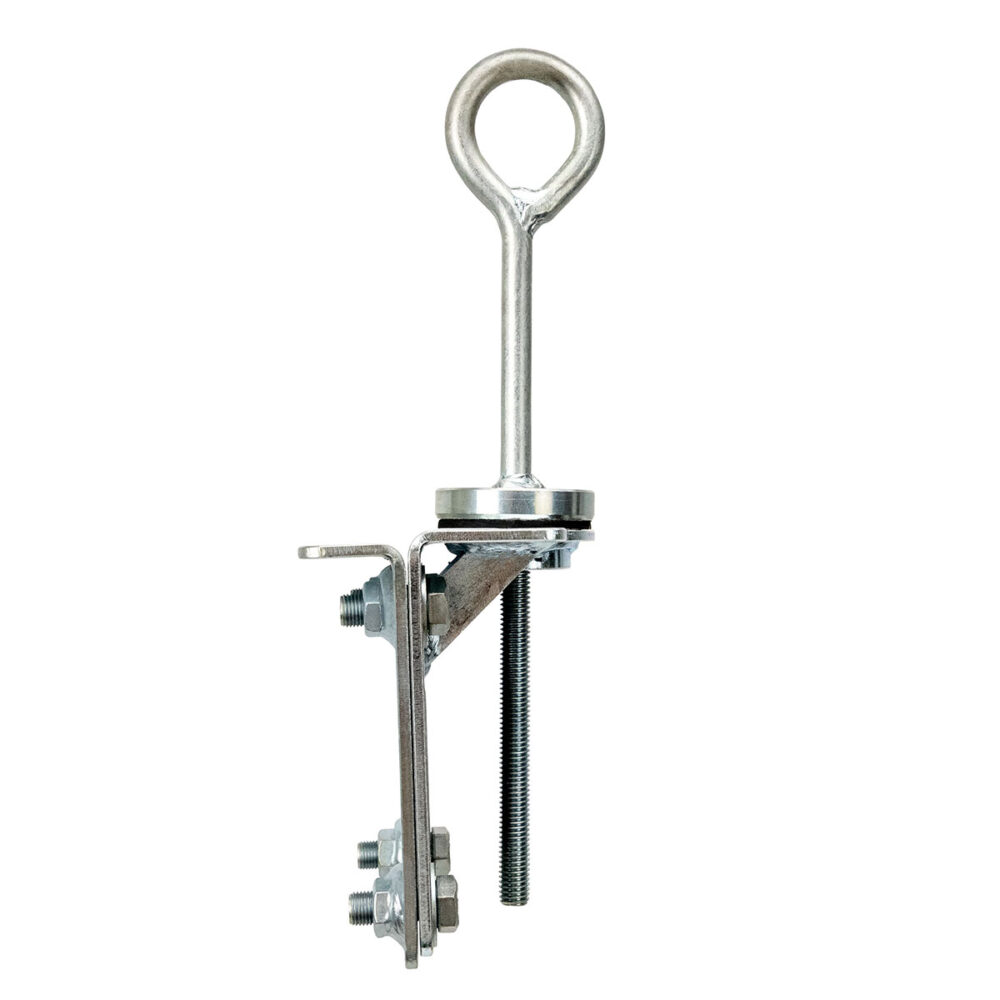

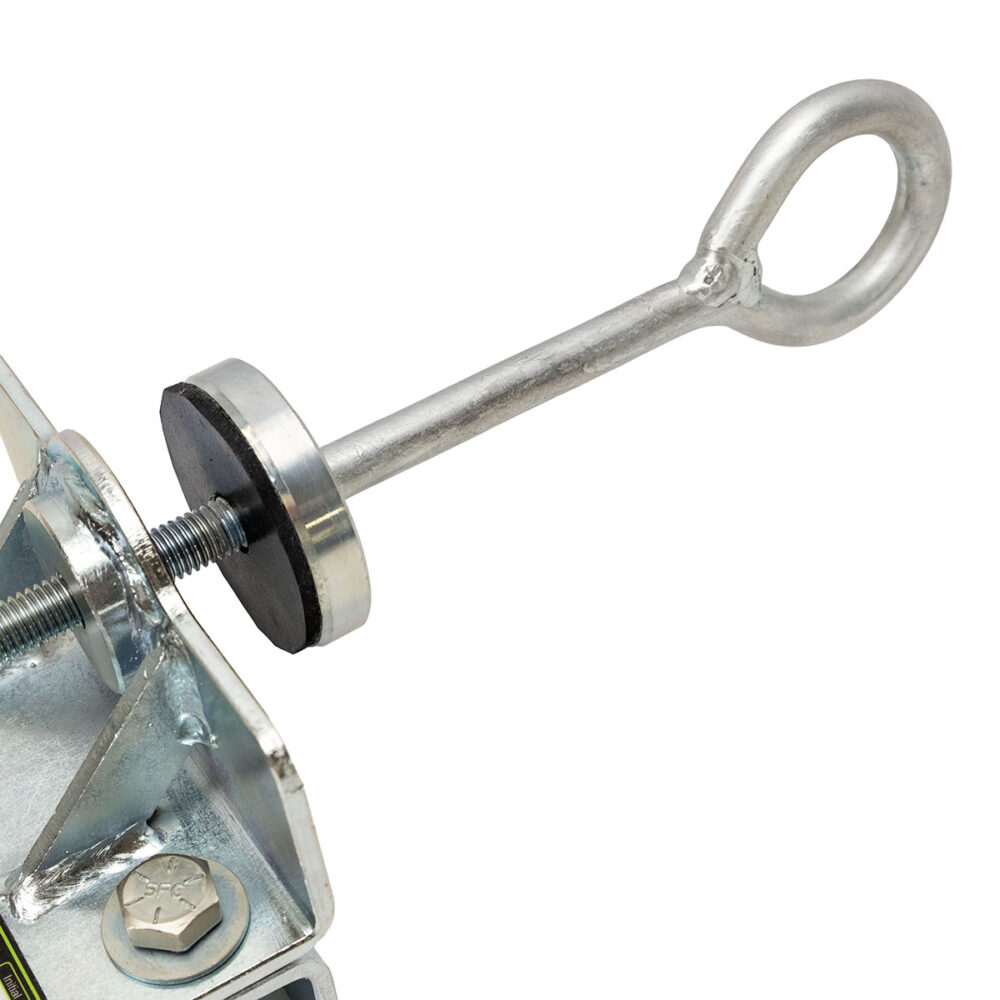

- Replacement captive eye for the Safewaze Purlin Anchor (025-4130)
- Extends the service life of the anchorage system
- NBR foam gasket helps protect the installation point from moisture, dirt and debris
| Material | Steel |
|---|---|
| Type | Permanent, Temporary, Temporary/Permanent |
Related products
-
019-4005
-
FS-EX311
-
019-21001
Specifications
| Material(s): | Zinc-Plated Steel, NBR foam |
| Weight: | 1.5 lbs. (0.7 kg) |
| Dimensions: | 13.25" x 3" x 3" (33.7 cm x 7.6 cm x 7.6 cm) |
| Attachment Point(s): | Captive eye |
| Minimum Breaking Strength: | 5,000 lbs. (22 kN) |
| Must be attached to the 025-4130 Purlin Anchor to be certified for OSHA at 5,000 lbs. MBS. Not rated for fall protection on its own. Must be installed within 12" of the I-beam support |
