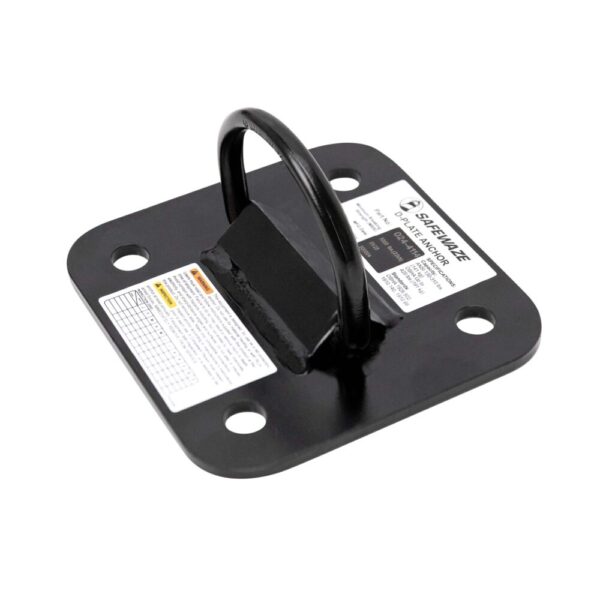

The D-Plate Anchor is a low-profile, bolt-on anchor point designed for use in both temporary or permanent applications. Featuring a pivoting D-ring attachment, it provides a secure connection for fall arrest or restraint. Ideal for overhead or vertical surfaces, this anchor is a simple, reliable solution for a wide range of structural tie-off needs.
D-Plate Anchor
024-4114
D-Plate Anchor
024-4114Steel
The D-Plate Anchor is a low-profile, bolt-on anchor point designed for use in both temporary or permanent applications. Featuring a pivoting D-ring attachment, it provides a secure connection for fall arrest or restraint. Ideal for overhead or vertical surfaces, this anchor is a simple, reliable solution for a wide range of structural tie-off needs.
Features:
- For installation and use on steel surfaces, I-beams or in fully cured concrete 3000 PSI or higher
- Temporary or permanent installation
- Suitable for horizontal lifelines (HLL) or material hauling

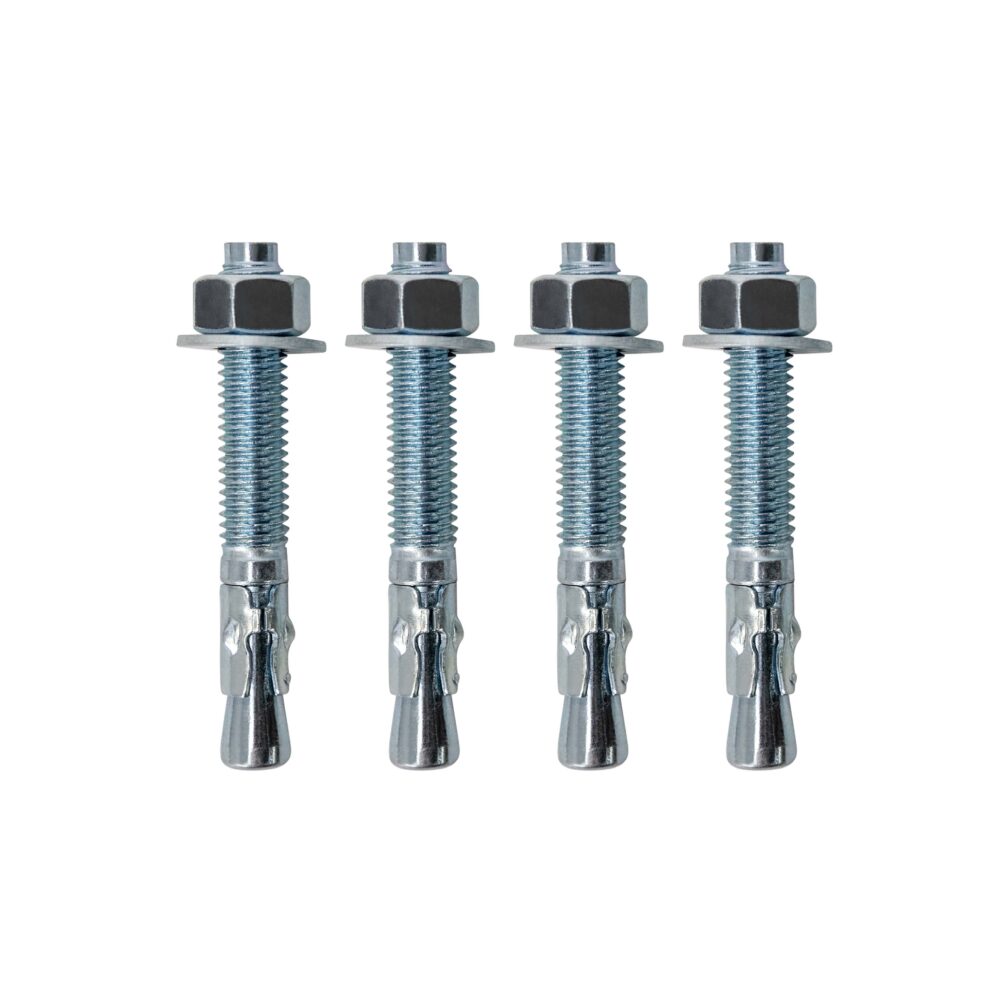

- (4) 3-3/4’’ x 1/2’’ concrete wedge bolt fasteners included
| Type | Permanent, Temporary, Temporary/Permanent |
|---|---|
| New Product | Yes |
Related products
-
021-4048
-
021-4041
-
023-4108
Specifications
| Materials: | Powder-coated steel, Grade 2 steel bolts |
| Weight: | 2.6 lbs. (1.2 kg) |
| Dimensions: | 6" x 6" x 0.25" |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Steel Installation: | (4) 1/2” diameter grade 8 steel bolts, length dependent on installation location (not included) |
