Related Products: Belmont Hatch Systems 023-12154, 023-12155, 023-12156, 023-12157, 023-12158, 023-12159, 023-12160, 023-12161, 023-12162

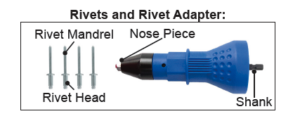

The purchase of a Safewaze Belmont Safety Hatch System includes a rivet adapter and four rivets. The rivet adapter is used in conjunction with a drill (not provided) during the installation process. Refer to the manual provided with the product, or available online, for detailed installation information.
The user must utilize a drill with a minimum torque strength of 15 Nm when using the provided rivet adapter. The user shall follow the Safewaze product manual and the following instructions to properly use the rivet adapter:
- Attach the rivet adapter to a drill by inserting the shank of the rivet adapter into the drill’s chuck Tighten securely.
- Hold on to the rivet adapter and place the drill in its reverse gear. Slowly start the drill until a “clicking” sound is heard. The rivet adapter is now ready for use.
- Insert a rivet mandrel into the rivet adapter’s nose piece.
- Hold on to the rivet adapter and place the drill in its forward gear.
- Insert the rivet head into one of the aligned pre-drilled holes of the Lifting Tube and Drive Unit (see manual).
- Slowly pull the trigger of the drill. The rivet adapter will pull the rivet head through the rivet mandrel, clamping the Lifting Tube and Drive Unit together.
- Put the drill into its reverse gear until the remaining portion of the rivet mandrel is ejected from the rivet adapter.
- Repeat steps 3-7 for the additional three rivets.
If you have any questions regarding the information in this Technical Bulletin, please contact Customer Service at (800) 230-0319.
